EXPO SINGLE P

Machine features

  • Rear tool holder
  • Hydraulic widening and inclination managed by means of a 2-element electro-distributor directly from the Joystick (2 quick couplings required)
  • Double-acting cylinder parallelogram system, equipped with quick coupling on toothed washer and feeler for blade or plow.
  • Predisposition for the application of short wires mower head or shoot remover with drainage system of the hydraulic motor on female quick coupling (to be connected directly to the free exhaust of the tractor)
  • 4-way tap to exclude the parallelogram system or the driving tool and use the NON-driving accessory
  • Cast iron filter
  • Emergency recall of the tool controlled by Joystick
  • RH and LH wheels with mechanical adjustment of the working height and lateral skidding resistance




Contact request

Fille the form to get in touch.
The marked fields with * are required

Configurator

Select model

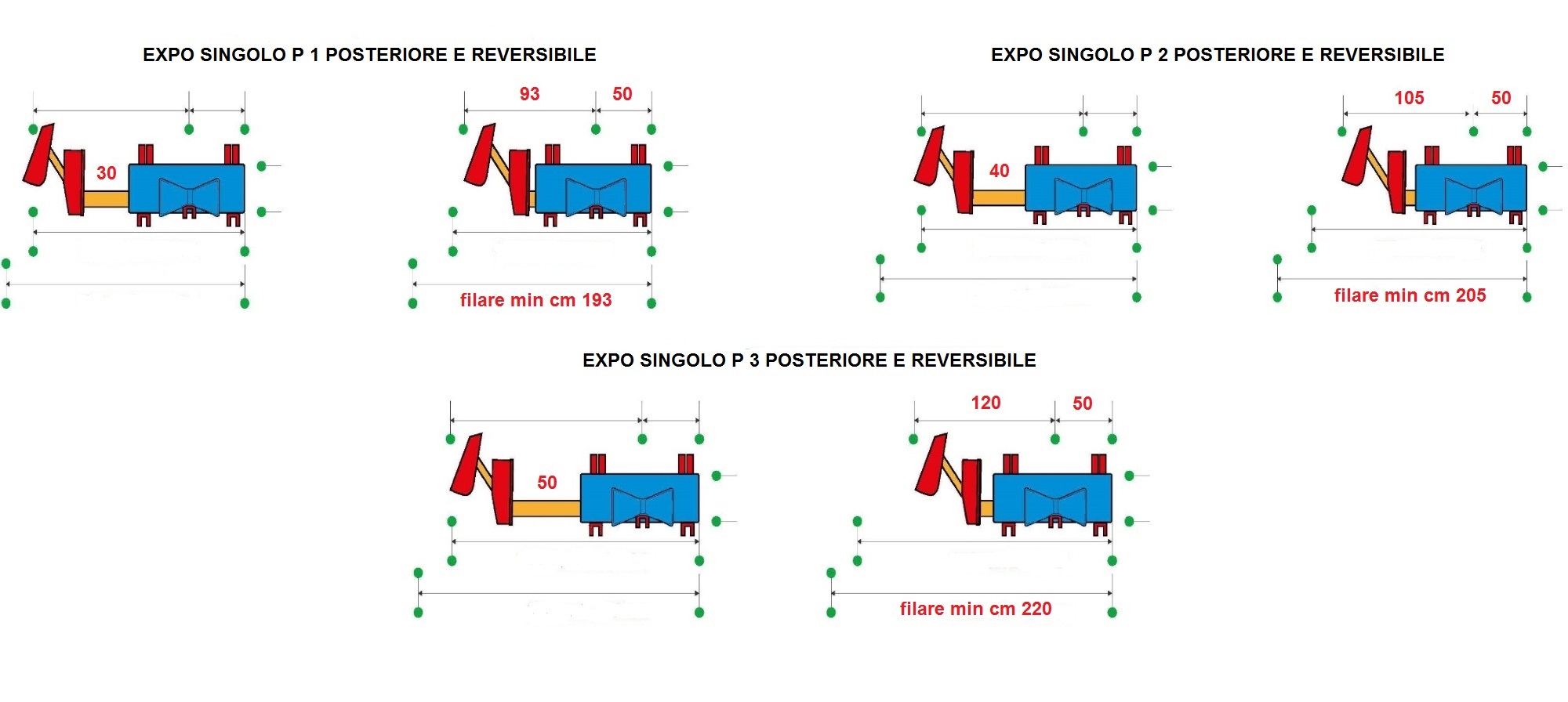

Modello Code Minimum power Single widening Machine width Min width row Weight
Expo single P 1 1722 40 30 143 / 173 193 140
Expo single P 2 1749 40 40 155 / 195 205 180
Expo single P 3 1660 40 50 170 / 220 220 210
Version






Industry 4.0

Select optionals

Code Description
Frame with reversible 3-point hitch. Bindings with adjustable center distance 68-90cm by including oversized wheel to be used when the machine is pushed. Applicable only when ordering. 1450/S

Frame with reversible 3-point hitch. Bindings with adjustable center distance 68-90cm by including oversized wheel to be used when the machine is pushed. Applicable only when ordering.

RH removing plow kit complete with bow and specific hopper cleaner. 1434

RH removing plow kit complete with bow and specific hopper cleaner.

RH inter-row blade kit complete with arch and stump cleaner. 1435

RH inter-row blade kit complete with arch and stump cleaner.

4m power cable (necessary for tractors without 3-pole female socket). 1190

4m power cable (necessary for tractors without 3-pole female socket).

Power cable 4m extension. 1411

Power cable 4m extension.

3m extension cable for single channel and dual-channel joystick. 1193

3m extension cable for single channel and dual-channel joystick.

Adding cost for RH and LH vulcanized rubber wheels with steel core installation (in substitution of standard wheels). 2035

Adding cost for RH and LH vulcanized rubber wheels with steel core installation (in substitution of standard wheels).

RH adjustable ground cover with shock absorber. (pay attention to the overall dimensions when flanging) 1684

RH adjustable ground cover with shock absorber. (pay attention to the overall dimensions when flanging)

RH hydraulic wheel adjustment with 2 quick tractor couplings (only when ordering). 1743

RH hydraulic wheel adjustment with 2 quick tractor couplings (only when ordering).

RH cover fin extension for ground fender with shock absorber code 1684. 1816

RH cover fin extension for ground fender with shock absorber code 1684.

Adapter to apply contemporarily front starcut blade set at 2/3 stars and rare fingerstar. 1437

Adapter to apply contemporarily front starcut blade set at 2/3 stars and rare fingerstar.

Adapter for fingerstar to be applied in substitution of plant lifting plough and inter-row blade. 1438

Adapter for fingerstar to be applied in substitution of plant lifting plough and inter-row blade.

Adapter to apply ridger bit disc or starcut blade set. 1665

Adapter to apply ridger bit disc or starcut blade set.

Fingerstar diameter 54cm with predisposition for application on parallelogram cylinder (blue - hard). ASTARDEXD031

Fingerstar diameter 54cm with predisposition for application on parallelogram cylinder (blue - hard).

RH fingerstar diameter 70cm (red - hard). ASTARDEXD026

RH fingerstar diameter 70cm (red - hard).

Universal no traction adjustable ridger bit disc diameter 40cm. The code 1437 or 1665 must be applied. 1264

Universal no traction adjustable ridger bit disc diameter 40cm. The code 1437 or 1665 must be applied.

RH no traction adjustable serrated ridger 2-discs diameter 40cm complete with cleaner on first disk. The code 1437 or 1665 must be applied. 1312

RH no traction adjustable serrated ridger 2-discs diameter 40cm complete with cleaner on first disk. The code 1437 or 1665 must be applied.

RH starcut blade 2 stars. We suggest to use it in combination with fingerstar. Code 1437 or 1665 must be applied. 1699

RH starcut blade 2 stars. We suggest to use it in combination with fingerstar. Code 1437 or 1665 must be applied.

RH starcut blade set with 3 stars. Code 1437 or 1665 must be applied. 1730

RH starcut blade set with 3 stars. Code 1437 or 1665 must be applied.

Hydraulic shoot remover with oscillating adapter. Is not applicable with other driving and non-driving tools.ATTENTION: for a correct use, the FLOW must be MINIMUM 30 lt/m and MAXIMUM 40 lt/m. 1440

Hydraulic shoot remover with oscillating adapter. Is not applicable with other driving and non-driving tools.

ATTENTION: for a correct use, the FLOW must be MINIMUM 30 lt/m and MAXIMUM 40 lt/m.

Compact mower head complete with oscillating adapter with quick couplings for P models. Cannot be used with other driving or non-driving tools.ATTENTION: for a correct use, the FLOW must be MINIMUM 30 lt/m and MAXIMUM 40 lt/m. 1818/PDX

Compact mower head complete with oscillating adapter with quick couplings for P models. Cannot be used with other driving or non-driving tools.

ATTENTION: for a correct use, the FLOW must be MINIMUM 30 lt/m and MAXIMUM 40 lt/m.


The marked fields with * are required

Table form

Model Code Minimum power Single widening Machine width Min width row Weight
Expo single P 1 1722 40 30 143 / 173 193 140
Expo single P 2 1749 40 40 155 / 195 205 180
Expo single P 3 1660 40 50 170 / 220 220 210
