EXPO SINGLE B

Machine features

  • Tool-carrier with hydraulic widening
  • Available in version with front or rear three-point couplings
  • On demand: power take-off high (for rubber-tyred tractors), low (for crawler tractors) or with pump directly connected to the tractor power take-off (for rubber-tyred and crawler tractors)
  • Kit including multiplier single pump, hoses, filter, tank and oil
  • Single heat exchanger with double thermostat
  • Electronic control unit with general alarm
  • 55 cm RH side inter-row blade with single channel joystick for electrohydraulic emergency blade return
  • Bulldozer-like tilling spur
  • RH and LH toothed wheels for depth adjustment and side stability control
  • RH lateral hydraulic widening with 2 quick tractor couplings





Contact request

Fille the form to get in touch.
The marked fields with * are required

Configurator

Select model

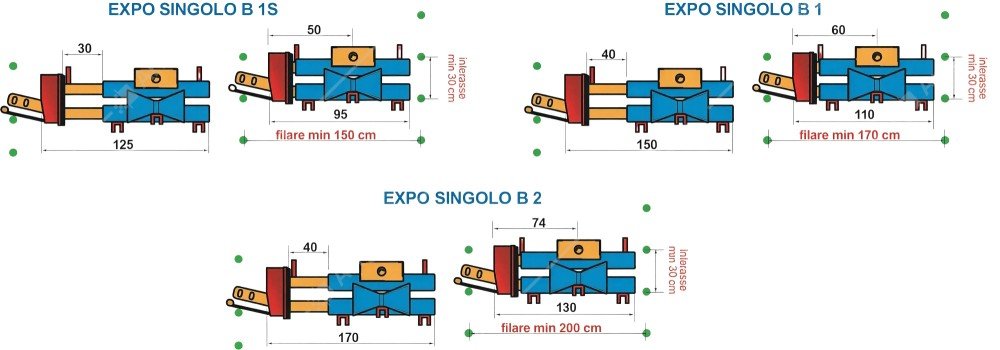

Model Code Minimum power Single widening Machine width Min width row Weight
Expo single B 1S 1259 40 30 95 / 125 150 340
Expo single B 1 1028 40 40 110 / 150 170 365
Expo single B 2 0772 40 40 130 / 170 200 385
Version

PTO

Power take-off


Blade/s


Industry 4.0

Select optionals

Code Description
Flow diverter system to control 2 double effect cylinders separately with only 2 quick tractor couplings. 1287

Flow diverter system to control 2 double effect cylinders separately with only 2 quick tractor couplings.

Reversibility complete of front/rear 3-points coupling and triple power take-off with cardan: RH 540rpm front, RH 540 rpm rare, LH 1000rpm rare. Not available on versions 1XS, 1S, 1 and telescopic. Only when ordering. 1362

Reversibility complete of front/rear 3-points coupling and triple power take-off with cardan: RH 540rpm front, RH 540 rpm rare, LH 1000rpm rare. Not available on versions 1XS, 1S, 1 and telescopic. Only when ordering.

Fourth power take-off 540 rpm LH. Needed reversibility complete code 1362. Only when ordering. 1693

Fourth power take-off 540 rpm LH. Needed reversibility complete code 1362. Only when ordering.

4m power cable (necessary for tractors without 3-pole female socket). 1190

4m power cable (necessary for tractors without 3-pole female socket).

Power cable 4m extension. 1411

Power cable 4m extension.

3m extension cable for single channel and dual-channel joystick. EJOYSCVPL004

3m extension cable for single channel and dual-channel joystick.

Hydraulic tube extension kit (suction and pressure) with 5,50m for single pump with 2 quick couplings for more oil. 1196

Hydraulic tube extension kit (suction and pressure) with 5,50m for single pump with 2 quick couplings for more oil.

Hydraulic tube extensions kit (suction and pressure) 5,50m for single pump with 2 tubes (without quick couplings). 1199

Hydraulic tube extensions kit (suction and pressure) 5,50m for single pump with 2 tubes (without quick couplings).

Adding cost for RH and LH vulcanized rubber wheels with steel core installation (in substitution of standard wheels). 2035

Adding cost for RH and LH vulcanized rubber wheels with steel core installation (in substitution of standard wheels).

RH button for feeler deactivation to work. Applicable only when ordering. 1052/B - R- ECO

RH button for feeler deactivation to work. Applicable only when ordering.

Push button for immediate RH rotary brush/mower head wire rotation stop. Applicable only when ordering. 1158/B - R - ECO

Push button for immediate RH rotary brush/mower head wire rotation stop. Applicable only when ordering.

RH hydraulic wheel adjustment with 2 quick tractor couplings (only when ordering). 1743

RH hydraulic wheel adjustment with 2 quick tractor couplings (only when ordering).

RH hydraulic inter-row inclination with 2 quick tractor couplings. The width of the whole machine increases by 5cm. Only when ordering. 0698

RH hydraulic inter-row inclination with 2 quick tractor couplings. The width of the whole machine increases by 5cm. Only when ordering.

RH extra lateral widening extension for Expo Ver. 1S models B, R ECO, R TOP: maximum widening 40cm. Only when ordering. 1171

RH extra lateral widening extension for Expo Ver. 1S models B, R ECO, R TOP: maximum widening 40cm. Only when ordering.

RH extra lateral widening extension for Expo Ver. 1S and 1 models B, R ECO, R TOP: maximum widening 50cm. Only when ordering. 1016

RH extra lateral widening extension for Expo Ver. 1S and 1 models B, R ECO, R TOP: maximum widening 50cm. Only when ordering.

RH extra lateral widening extension for Expo Ver. 1 and 2 models B, R ECO, R TOP: maximum widening 60cm. The total wide increases +7cm (on LH side). Only when ordering. 1017

RH extra lateral widening extension for Expo Ver. 1 and 2 models B, R ECO, R TOP: maximum widening 60cm. The total wide increases +7cm (on LH side). Only when ordering.

RH extra lateral widening extension for Expo Ver. 2 models B, R ECO, R TOP: maximum widening 80cm. The total wide increases +24cm on LH side. Only when ordering. 1020

RH extra lateral widening extension for Expo Ver. 2 models B, R ECO, R TOP: maximum widening 80cm. The total wide increases +24cm on LH side. Only when ordering.

RH extra lateral widening extension for Expo Ver. 2 models B, R ECO, R TOP: maximum widening 100cm. The total wide increases +34cm on LH side. Only when ordering. 1658

RH extra lateral widening extension for Expo Ver. 2 models B, R ECO, R TOP: maximum widening 100cm. The total wide increases +34cm on LH side. Only when ordering.

RH blade with clod breaker, fin and feeler 45cm (additionally at the standard blade). 0982

RH blade with clod breaker, fin and feeler 45cm (additionally at the standard blade).

RH blade with clod breaker, fin and feeler 65cm (additionally to standard blade). 0695

RH blade with clod breaker, fin and feeler 65cm (additionally to standard blade).

RH blade with clod breaker, fin and feeler 85cm (additionally to standard blade). 0696

RH blade with clod breaker, fin and feeler 85cm (additionally to standard blade).

RH non-stop feeler pin holder. 1160

RH non-stop feeler pin holder.

RH oscillating feeler pin holder adjustable in height. 1085

RH oscillating feeler pin holder adjustable in height.

RH reinforced adjustable fender ground cover in special steel with wear-resistant interchangeable sled. It can't use contemporary with no-traction ploughshare RH code 0702 and AARATROFR060. 1767

RH reinforced adjustable fender ground cover in special steel with wear-resistant interchangeable sled. It can't use contemporary with no-traction ploughshare RH code 0702 and AARATROFR060.

Note

The codes 1405, 1046, AARATROFR060 e 1767 can be inserted in the configuration but the machine can be equipped with only one option at a time..

RH cover fin extension for adjustable reinforced ground fender. APRTEESND028

RH cover fin extension for adjustable reinforced ground fender.

Kit cover fin extension for RH adjustable reinforced ground fender with rise strap. APRTEESND034

Kit cover fin extension for RH adjustable reinforced ground fender with rise strap.

RH adjustable and reinforced shock absorber. 1409

RH adjustable and reinforced shock absorber.

RH ground fender with adjustable delimiter disc. Cannot be used at the same time as the RH lifter plough kit code 0702 and AARATROFR060. 1405

RH ground fender with adjustable delimiter disc. Cannot be used at the same time as the RH lifter plough kit code 0702 and AARATROFR060.

Note

The codes 1405, 1046, AARATROFR060 e 1767 can be inserted in the configuration but the machine can be equipped with only one option at a time..

RH stump cleaner for inter-row kit (remove the fixing plate when installing code 1247 RH vertical wires mower head). 1050

RH stump cleaner for inter-row kit (remove the fixing plate when installing code 1247 RH vertical wires mower head).

RH sled for terrain with stones or superficial roots. 0483

RH sled for terrain with stones or superficial roots.

RH 45cm inter-row plant lifting ploughshare. 1187

RH 45cm inter-row plant lifting ploughshare.

RH 45cm inter-row plant lifting ploughshare with specify stump cleaner. AVOMSQCDP007

RH 45cm inter-row plant lifting ploughshare with specify stump cleaner.

RH 55cm inter-row plant lifting ploughshare. 1268

RH 55cm inter-row plant lifting ploughshare.

RH 55cm inter-row plant lifting ploughshare with specify stump cleaner. AVOMSCCDP019

RH 55cm inter-row plant lifting ploughshare with specify stump cleaner.

RH plant lifting plough kit with front depth directional wheel.  0702

RH plant lifting plough kit with front depth directional wheel.

Note

The codes 1405, 1046, 0702 e 1767 can be inserted in the configuration but the machine can be equipped with only one option at a time..

RH plant lifting plough kit with front depth directional wheel and specify stump cleaner.  AARATROFR060

RH plant lifting plough kit with front depth directional wheel and specify stump cleaner.

Note

The codes 1405, 1046, AARATROFR060 e 1767 can be inserted in the configuration but the machine can be equipped with only one option at a time..

RH kit adjustable ground fender cover with shock absorber complete with universal holder support for RH plant lifting plough kit with or without stump cleaner 2047

RH kit adjustable ground fender cover with shock absorber complete with universal holder support for RH plant lifting plough kit with or without stump cleaner

RH no traction bulldozer-disk diameter 32cm. 0488

RH no traction bulldozer-disk diameter 32cm.

Universal no traction adjustable rounded tiller disc diameter 36cm. 1266

Universal no traction adjustable rounded tiller disc diameter 36cm.

RH no traction adjustable rounded tiller disc diameter 36cm with quick tractor couplings hydraulic movement 15cm. 1782

RH no traction adjustable rounded tiller disc diameter 36cm with quick tractor couplings hydraulic movement 15cm.

Universal no traction adjustable ridger bit disc diameter 40cm. 1264

Universal no traction adjustable ridger bit disc diameter 40cm.

LH no traction adjustable ridger bit disc diameter 40cm with quick tractor couplings and hydraulic. Movement 15cm. 1784

LH no traction adjustable ridger bit disc diameter 40cm with quick tractor couplings and hydraulic. Movement 15cm.

RH no traction adjustable serrated ridger 2-discs diameter 40cm complete with cleaner on first disk. 1312

RH no traction adjustable serrated ridger 2-discs diameter 40cm complete with cleaner on first disk.

RH starcut blade set with 2 stars. 1419

RH starcut blade set with 2 stars.

RH starcut blade set with 3 stars. 1730

RH starcut blade set with 3 stars.

Adapter for application of RH driving tools (15cm). 0657

Adapter for application of RH driving tools (15cm).

RH fingerstar diameter 54cm for Expo complete with feeler and feeler pin holder (blue - hard). ASTARDEXD034

RH fingerstar diameter 54cm for Expo complete with feeler and feeler pin holder (blue - hard).

RH fingerstar diameter 54cm (blue - hard). ASTARDEXD032

RH fingerstar diameter 54cm (blue - hard).

RH hydraulic system kit to install driving accessories. Only when ordering. 1341

RH hydraulic system kit to install driving accessories. Only when ordering.

RH vertical wires mower with adapter for Expo versions and wheel with mechanical adjustment for depth adjustment. 1247

RH vertical wires mower with adapter for Expo versions and wheel with mechanical adjustment for depth adjustment.

RH mower head complete with adapter, feeler and feeler holder.  1818

RH mower head complete with adapter, feeler and feeler holder.

RH hydraulic short wires mower head with gear motor and oscillating adapter.  ATRFCDX022

RH hydraulic short wires mower head with gear motor and oscillating adapter.

RH hydraulic rotary brush with gear motor and oscillating adapter.  1150

RH hydraulic rotary brush with gear motor and oscillating adapter.

RH traction mower head with blades or strings diameter 50cm. 0720

RH traction mower head with blades or strings diameter 50cm.

RH traction mower head with strings diameter 50cm. ATRBLDX053

RH traction mower head with strings diameter 50cm.

RH circular cutter hydraulic kit for 55cm or 65cm inter-row blade. AFRCLEXDX021

RH circular cutter hydraulic kit for 55cm or 65cm inter-row blade.

RH disk traction non-driving toothed disk diameter 40cm with working angle register.  1371

RH disk traction non-driving toothed disk diameter 40cm with working angle register.

RH 2 kit disks traction non-driving toothed disks diameter 40cm with working angle register.  1777

RH 2 kit disks traction non-driving toothed disks diameter 40cm with working angle register.

RH adapter to apply on the fixed arm a rotary tiller or hoe or mower head or set toothed disks. 1203

RH adapter to apply on the fixed arm a rotary tiller or hoe or mower head or set toothed disks.

RH 3 kit disks no-traction driving toothed disks diameter 40cm. 1775

RH 3 kit disks no-traction driving toothed disks diameter 40cm.

RH 4 kit disks no-traction driving toothed disks diameter 40cm. 1773

RH 4 kit disks no-traction driving toothed disks diameter 40cm.

RH 5 disks kit no-traction driving toothed disks diameter 40cm. 1757

RH 5 disks kit no-traction driving toothed disks diameter 40cm.


The marked fields with * are required

Table form

Model Code Minimum power Single widening Machine width Min width row Weight
Expo single B 1S 1259 40 30 95 / 125 150 340
Expo single B 1 1028 40 40 110 / 150 170 365
Expo single B 2 0772 40 40 130 / 170 200 385
