SINGLE UNDER TOP

Machine features

  • Tool-carrier with hydraulic widening
  • Available in version with front or rear three-point couplings
  • Power take-off central with cardan
  • Hydraulic predisposition for traction utensils application with FAUCET KIT
  • Multiplier (Gr3) triple pumps, hoses, filters, tank and oil
  • Single heat exchanger with double thermostat
  • Electrohydraulic distributor to control 3 double effect cylinders
  • 8-channel multifunction electronic control unit, without relay
  • 55 cm RH side inter-row blade with multifunction joystick for electrohydraulic emergency blade return
  • RH button for feeler pin deactivation to work with the utensil in the tall grass, to avoid that the feeler pin goes back in when it is not necessary
  • Bulldozer-like tilling spur
  • LH serrated wheels for depth adjustment and side stability control
  • Kit RH hydraulic toothed wheel “ZERO BULK” (NO IMPACT ON THE PLANTS BRANCHES) for depth adjustment and side stability control with multifunction joystick and possibility to install the wheel in STANDARD and OFFSET mode
  • RH lateral hydraulic extra widening available in 60 / 80 / 100 cm with multifunction joystick
  • Kit RH hydraulic tool inclination “ZERO BULK” (NO IMPACT ON THE PLANTS BRANCHES) with multifunction joystick





Contact request

Fille the form to get in touch.
The marked fields with * are required

Configurator

Select model

Model Code Minimum power Single widening Machine width Min width row Weight
Single TOP UNDER 60 2060 50 60 162 / 222 250 470
Single TOP UNDER 80 2061 50 80 177 / 242 250 485
Single TOP UNDER 100 2062 50 100 197 / 262 250 495
Version

PTO



Blade/s


Agriculture Smart

Select optionals

Code Description
4m power cable (necessary for tractors without 3-pole female socket). 1190

4m power cable (necessary for tractors without 3-pole female socket).

Power cable 4m extension. 1411

Power cable 4m extension.

Extension 3m cable for 8-channel multi-function joystick. 1192

Extension 3m cable for 8-channel multi-function joystick.

Hydraulic Tubes Extensions kit (suction and pressure) 5,50m, quick couplings for oil for dual pump. 1195

Hydraulic Tubes Extensions kit (suction and pressure) 5,50m, quick couplings for oil for dual pump.

Hydraulic Extensions tube Kit (suction and pressure) with 5,50m lenght for dual pump for greater oil flow (whitout quick couplings). 1198

Hydraulic Extensions tube Kit (suction and pressure) with 5,50m lenght for dual pump for greater oil flow (whitout quick couplings).

Adding cost for RH and LH vulcanized rubber wheels with steel core installation (in substitution of standard wheels). 2035

Adding cost for RH and LH vulcanized rubber wheels with steel core installation (in substitution of standard wheels).

Push button for immediate RH rotary brush/mower head wire rotation stop. Applicable only when ordering. 1158/R - TOP

Push button for immediate RH rotary brush/mower head wire rotation stop. Applicable only when ordering.

RH blade with clod breaker, fin and feeler 45cm (additionally at the standard blade). 0982

RH blade with clod breaker, fin and feeler 45cm (additionally at the standard blade).

RH blade with clod breaker, fin and feeler 65cm (additionally to standard blade). 0695

RH blade with clod breaker, fin and feeler 65cm (additionally to standard blade).

RH blade with clod breaker, fin and feeler 85cm (additionally to standard blade). 0696

RH blade with clod breaker, fin and feeler 85cm (additionally to standard blade).

RH non-stop feeler pin holder. 1160

RH non-stop feeler pin holder.

RH oscillating feeler pin holder adjustable in height. 1085

RH oscillating feeler pin holder adjustable in height.

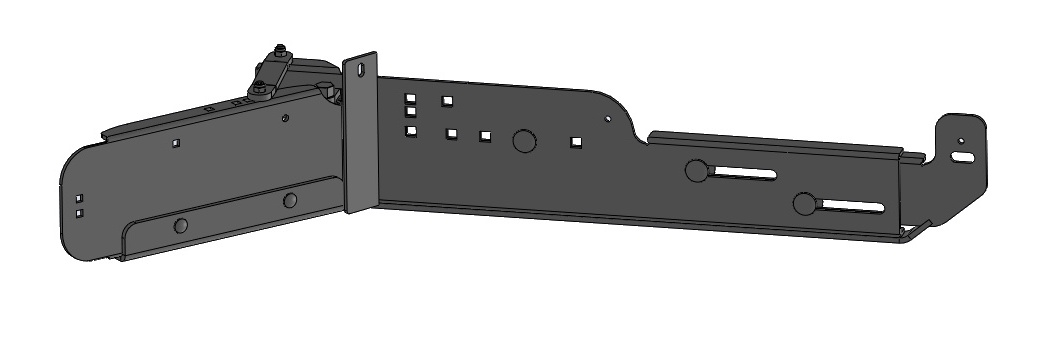

RH reinforced adjustable fender ground cover in special steel with wear-resistant interchangeable sled. It can't use contemporary with no-traction ploughshare RH code 0702 and AARATROFR060. 1767

RH reinforced adjustable fender ground cover in special steel with wear-resistant interchangeable sled. It can't use contemporary with no-traction ploughshare RH code 0702 and AARATROFR060.

Note

The codes 1767, 1405, ADSCMEDXC012, 1767 e 1405 can be inserted in the configuration but the machine can be equipped with only one option at a time..

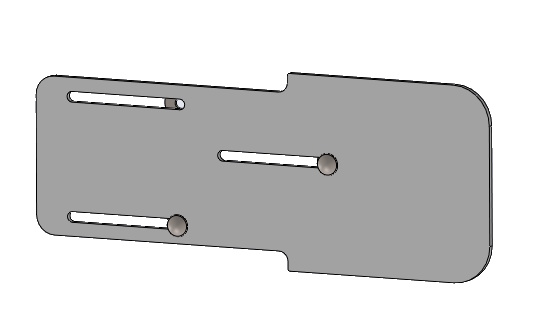

RH cover fin extension for adjustable reinforced ground fender. APRTEESND028

RH cover fin extension for adjustable reinforced ground fender.

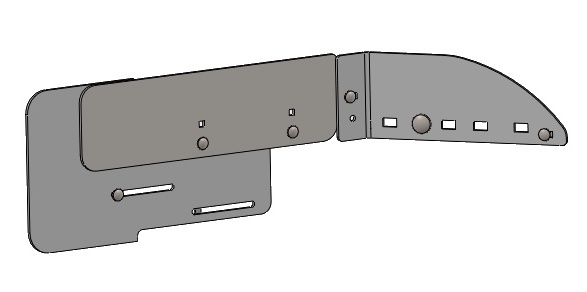

Kit cover fin extension for RH adjustable reinforced ground fender with rise strap. APRTEESND034

Kit cover fin extension for RH adjustable reinforced ground fender with rise strap.

RH adjustable and reinforced shock absorber. 1409

RH adjustable and reinforced shock absorber.

RH ground fender with adjustable delimiter disc. Cannot be used at the same time as the RH lifter plough kit code 0702 and AARATROFR060. 1405

RH ground fender with adjustable delimiter disc. Cannot be used at the same time as the RH lifter plough kit code 0702 and AARATROFR060.

Note

The codes 1767, 1405, ADSCMEDXC012, 1767 e 1405 can be inserted in the configuration but the machine can be equipped with only one option at a time..

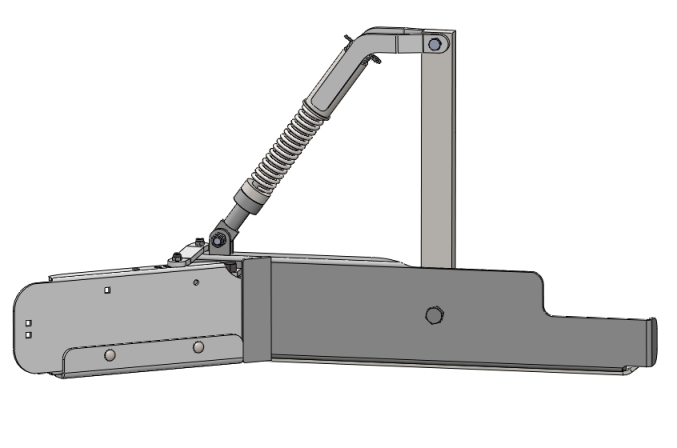

RH adjustable ground fender cover with shock absorber only for UNDER front version. Could be applied also with codes ADSCMEDXQ007, ADSCMEDXC012 e AFRECSCDX001 APRTEVDAM014

RH adjustable ground fender cover with shock absorber only for UNDER front version. Could be applied also with codes ADSCMEDXQ007, ADSCMEDXC012 e AFRECSCDX001

RH stump cleaner for inter-row kit (remove the fixing plate when installing code 1247 RH vertical wires mower head). 1050

RH stump cleaner for inter-row kit (remove the fixing plate when installing code 1247 RH vertical wires mower head).

RH sled for terrain with stones or superficial roots. 0483

RH sled for terrain with stones or superficial roots.

RH 45cm inter-row plant lifting ploughshare. 1187

RH 45cm inter-row plant lifting ploughshare.

RH 45cm inter-row plant lifting ploughshare with specify stump cleaner. AVOMSQCDP009

RH 45cm inter-row plant lifting ploughshare with specify stump cleaner.

RH 55cm inter-row plant lifting ploughshare. 1268

RH 55cm inter-row plant lifting ploughshare.

RH 55cm inter-row plant lifting ploughshare with specify stump cleaner. AVOMSCCDP021

RH 55cm inter-row plant lifting ploughshare with specify stump cleaner.

RH plant lifting plough kit with front depth directional wheel.  0702

RH plant lifting plough kit with front depth directional wheel.

Note

The codes 0702, 1046, 1767 e 1405 can be inserted in the configuration but the machine can be equipped with only one option at a time..

RH plant lifting plough kit with front depth directional wheel and specify stump cleaner.  AARATROFR060

RH plant lifting plough kit with front depth directional wheel and specify stump cleaner.

Note

The codes AARATROFR060, 1046, 1767 e 1405 can be inserted in the configuration but the machine can be equipped with only one option at a time..

RH kit adjustable ground fender cover with shock absorber complete with universal holder support for RH plant lifting plough kit with or without stump cleaner 2047

RH kit adjustable ground fender cover with shock absorber complete with universal holder support for RH plant lifting plough kit with or without stump cleaner

RH no traction bulldozer-disk diameter 32cm. 0488

RH no traction bulldozer-disk diameter 32cm.

Universal no traction adjustable rounded tiller disc diameter 36cm. 1266

Universal no traction adjustable rounded tiller disc diameter 36cm.

RH no traction adjustable rounded tiller disc diameter 36cm with quick tractor couplings hydraulic movement 15cm. 1782

RH no traction adjustable rounded tiller disc diameter 36cm with quick tractor couplings hydraulic movement 15cm.

Universal no traction adjustable ridger bit disc diameter 40cm. 1264

Universal no traction adjustable ridger bit disc diameter 40cm.

RH no traction adjustable ridger bit disc diameter 40cm with quick tractor couplings and hydraulic. Movement 15cm. 1784

RH no traction adjustable ridger bit disc diameter 40cm with quick tractor couplings and hydraulic. Movement 15cm.

RH no traction adjustable serrated ridger 2-discs diameter 40cm complete with cleaner on first disk. 1312

RH no traction adjustable serrated ridger 2-discs diameter 40cm complete with cleaner on first disk.

Adapter for application of RH driving tools (15cm). 0657

Adapter for application of RH driving tools (15cm).

RH 3 kit disks non-traction non-driving toothed disks diameter 40cm. 1201

RH 3 kit disks non-traction non-driving toothed disks diameter 40cm.

RH 4 kit disks non-traction non-driving toothed disks diameter 40cm. 1279

RH 4 kit disks non-traction non-driving toothed disks diameter 40cm.

RH 5 kit disks non-traction non-driving toothed disks diameter 40cm. 1282

RH 5 kit disks non-traction non-driving toothed disks diameter 40cm.

RH starcut blade set with 2 stars. 1419

RH starcut blade set with 2 stars.

Note

The codes 1419, ASTARDEXD024, 1767, 1405 e 1730 can be inserted in the configuration but the machine can be equipped with only one option at a time..

RH starcut blade set with 3 stars. 1730

RH starcut blade set with 3 stars.

Note

The codes 1419, ASTARDEXD024, 1767, 1405 e 1730 can be inserted in the configuration but the machine can be equipped with only one option at a time..

RH fingerstar diameter 54cm for Expo complete with feeler and feeler pin holder (blue - hard). ASTARDEXD034

RH fingerstar diameter 54cm for Expo complete with feeler and feeler pin holder (blue - hard).

RH fingerstar diameter 54cm (blue - hard). ASTARDEXD032

RH fingerstar diameter 54cm (blue - hard).

RH fingerstar diameter 70cm (red - hard). ASTARDEXD024

RH fingerstar diameter 70cm (red - hard).

Note

The codes 1419, ASTARDEXD024, 1767, 1405 e 1730 can be inserted in the configuration but the machine can be equipped with only one option at a time..

RH swath for pruning available for Expo / UNDER single with opening and closing cylinder with 2 quick couplings to the tractor. To be applied requires at least one of the code MANDADOPP023 or MANDADOPP127 MANDASING002

RH swath for pruning available for Expo / UNDER single with opening and closing cylinder with 2 quick couplings to the tractor. To be applied requires at least one of the code MANDADOPP023 or MANDADOPP127

Pivoting support wheel complete by reinforced tread and shielded bearings with toothed ring nut. ARUOTEMEC099

Pivoting support wheel complete by reinforced tread and shielded bearings with toothed ring nut.

Spatulas holder and rubber spatulas kit. MANDADOPP023

Spatulas holder and rubber spatulas kit.

Note

The codes MANDADOPP023 e MANDADOPP127 can be inserted in the configuration but the machine can be equipped with only one option at a time..

Brushes holder and nylon brushes kit. MANDADOPP127

Brushes holder and nylon brushes kit.

Note

The codes MANDADOPP023 e MANDADOPP127 can be inserted in the configuration but the machine can be equipped with only one option at a time..

RH vertical wires mower with adapter for Expo versions and wheel with mechanical adjustment for depth adjustment. 1247

RH vertical wires mower with adapter for Expo versions and wheel with mechanical adjustment for depth adjustment.

RH mower head complete with adapter, feeler and feeler holder.  1818

RH mower head complete with adapter, feeler and feeler holder.

RH hydraulic rotary brush with gear motor and oscillating adapter.  1150

RH hydraulic rotary brush with gear motor and oscillating adapter.

RH traction mower head with blades diameter 50cm. 0720

RH traction mower head with blades diameter 50cm.

RH traction mower head with strings diameter 50cm. ATRBLDX053

RH traction mower head with strings diameter 50cm.

RH traction mini-shredder head 60cm. 0718

RH traction mini-shredder head 60cm.

RH traction mini-shredder head 80cm complete with roller, feeler pin and floating adapter. 1462

RH traction mini-shredder head 80cm complete with roller, feeler pin and floating adapter.

RH traction mower head with blades diameter 80cm.  ATRBLDX067

RH traction mower head with blades diameter 80cm.

RH traction rotary plant lifter with 4 shedding fins diameter 40cm. 1042

RH traction rotary plant lifter with 4 shedding fins diameter 40cm.

RH kit to transform the rotary plant lifter in cutter diameter 40cm to 3 hoes. AKTSFDQTZ002

RH kit to transform the rotary plant lifter in cutter diameter 40cm to 3 hoes.

RH traction rotary plant lifter with 4 shedding fins diameter 50cm. 1043

RH traction rotary plant lifter with 4 shedding fins diameter 50cm.

RH circular cutter hydraulic kit for 55cm or 65cm inter-row blade. AFRCLEXDX021

RH circular cutter hydraulic kit for 55cm or 65cm inter-row blade.

RH kit to transform the rotary plant lifter in cutter diameter 50cm to 4 hoes. AKTSFDCQZ003

RH kit to transform the rotary plant lifter in cutter diameter 50cm to 4 hoes.

RH traction 3-hoes hydraulic circular cutter diameter 25cm complete with low engine for limited inter-row work. 1403

RH traction 3-hoes hydraulic circular cutter diameter 25cm complete with low engine for limited inter-row work.

RH traction 3-hoes hydraulic circular cutter diameter 40cm with brush. AFRECSQDX011

RH traction 3-hoes hydraulic circular cutter diameter 40cm with brush.

RH traction 3-hoes hydraulic circular cutter diameter 40cm with engine. AFRECQCDX025

RH traction 3-hoes hydraulic circular cutter diameter 40cm with engine.

RH kit to transform the cutter in rotary plant lifter diameter 40cm to 4 fins. 1149

RH kit to transform the cutter in rotary plant lifter diameter 40cm to 4 fins.

RH traction 4-hoes hydraulic circular cutter diameter 50cm. AFRECCCDX013

RH traction 4-hoes hydraulic circular cutter diameter 50cm.

RH kit to transform the cutter in rotary plant lifter diameter 50cm to 4 fins. 1093

RH kit to transform the cutter in rotary plant lifter diameter 50cm to 4 fins.

RH increased length adapter for traction tool application (30cm) AADTMDX026

RH increased length adapter for traction tool application (30cm)

RH traction hydraulic circular cutter, 65cm diameter complete with 6-hoes . AFRECSCDX001 RH traction hydraulic circular cutter, 65cm diameter complete with 6-hoes .
Note

The codes 1767, 1405 e AFRECSCDX001 can be inserted in the configuration but the machine can be equipped with only one option at a time..

RH traction 2-lifting disc 36cm diameter. 1289

RH traction 2-lifting disc 36cm diameter.

RH traction disk set with 3 plant lifting disks diameter 36cm. 0717

RH traction disk set with 3 plant lifting disks diameter 36cm.

RH traction 36cm diameter 4-lifting disc for Expo. ADSCMEDXQ007

RH traction 36cm diameter 4-lifting disc for Expo.

Note

The codes ADSCMEDXQ007, 1767 e 1405 can be inserted in the configuration but the machine can be equipped with only one option at a time..

RH traction 36cm diameter 5-lifting disc for Expo ADSCMEDXC012

RH traction 36cm diameter 5-lifting disc for Expo

Note

The codes 1767, 1405, ADSCMEDXC012, 1767 e 1405 can be inserted in the configuration but the machine can be equipped with only one option at a time..

RH stump cleaner on 2 / 3 / 4 traction disk set plant lifting disks diameter 36cm. 1384

RH stump cleaner on 2 / 3 / 4 traction disk set plant lifting disks diameter 36cm.

RH disk traction non-driving toothed disk diameter 40cm with working angle register.  1371

RH disk traction non-driving toothed disk diameter 40cm with working angle register.

RH 2 kit disks traction non-driving toothed disks diameter 40cm with working angle register.  1777

RH 2 kit disks traction non-driving toothed disks diameter 40cm with working angle register.

RH adapter to apply on the fixed arm a rotary tiller or hoe or mower head or set toothed disks. 1203

RH adapter to apply on the fixed arm a rotary tiller or hoe or mower head or set toothed disks.

RH 3 kit disks no-traction driving toothed disks diameter 40cm. 1775

RH 3 kit disks no-traction driving toothed disks diameter 40cm.

RH 4 kit disks no-traction driving toothed disks diameter 40cm. 1773

RH 4 kit disks no-traction driving toothed disks diameter 40cm.

RH 5 disks kit no-traction driving toothed disks diameter 40cm. 1757

RH 5 disks kit no-traction driving toothed disks diameter 40cm.


The marked fields with * are required

Table form

Model Code Minimum power Single widening Machine width Min width row Weight
Single TOP UNDER 60 2060 50 60 162 / 222 250 470
Single TOP UNDER 80 2061 50 80 177 / 242 250 485
Single TOP UNDER 100 2062 50 100 197 / 262 250 495
