Machine features

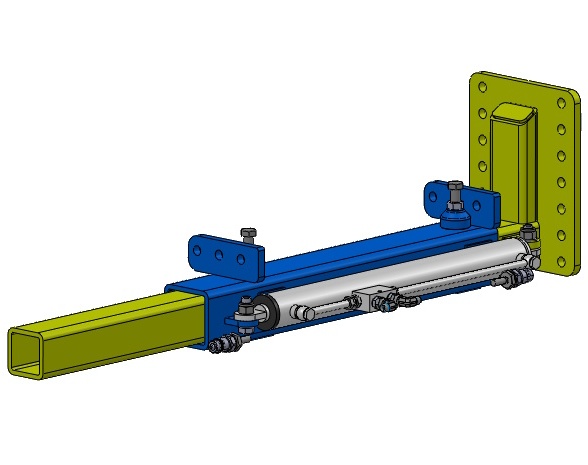

Ventral tool-carrier to apply on the tractor (WITHOUT FLANGING TO THE TRACTOR)
55 cm RH side inter-row blade with 2 quick tractor attachment and mechanic emergency blade return
Bulldozer-like tilling spur
Lifting ascent and descent with parallelogram system double effect cylinder control by 2 quick tractor couplings with system work in floating mode adjusting the push practiced on the utensil through hydraulic dimmer that allows tool to follow the ground sinuosity
Toothed wheel for work depth adjustment

Contact request

Fille the form to get in touch.
The marked fields with * are required

Name, last name*

Email*

Message

I accept Terms and conditions

Configurator

Select model

	Model	Code	Weight

	Ventral M ECO	VMECO	225

Industry 4.0

Industry 4.0 click here for info...

Select optionals

		Code	Description
		1004	Hydraulic 3-point control unit with oil including tank, double heat exchanger, multiplier, pump, filter, hoses, priority flow adjustment valve with 0 to 40 l/min manual variator, pressure gauge, pair of quick couplings (useful also to apply leaf strippers, polesetters, rotary brushes, augers, rakes for pruning, binders and cutting machines).
		1287	Flow diverter system to control 2 double effect cylinders separately with only 2 quick tractor couplings.
		0000	Hydraulic hoses extension to install the flow diverter directly on the tractor
		1190	4m power cable (necessary for tractors without 3-pole female socket).
		1411	Power cable 4m extension.
		1158/S	Push button for immediate rotary brush/mower head wire rotation stop. Applicable only when ordering.
		1432	Hydraulic inclination with 2 quick tractor couplings.
		1441	Extensible lateral hydraulic widening 50cm with 2 quick couplings (without flanging to be applied to tractor).
		1684	RH adjustable ground cover with shock absorber. (pay attention to the overall dimensions when flanging)
		0982	RH blade with clod breaker, fin and feeler 45cm (additionally at the standard blade).
		0695	RH blade with clod breaker, fin and feeler 65cm (additionally to standard blade).
		1160	RH non-stop feeler pin holder.
		1085	RH oscillating feeler pin holder adjustable in height.
		0483	RH sled for terrain with stones or superficial roots.
		1187	RH 45cm inter-row plant lifting ploughshare.
		AVOMSQCDP009	RH 45cm inter-row plant lifting ploughshare with specify stump cleaner.
		1268	RH 55cm inter-row plant lifting ploughshare.
		AVOMSCCDP021	RH 55cm inter-row plant lifting ploughshare with specify stump cleaner.
		0488	RH no traction bulldozer-disk diameter 32cm.
		1266	Universal no traction adjustable rounded tiller disc diameter 36cm.
		1264	Universal no traction adjustable ridger bit disc diameter 40cm.
		1312	RH no traction adjustable serrated ridger 2-discs diameter 40cm complete with cleaner on first disk.
		1419	RH starcut blade set with 2 stars.
		1730	RH starcut blade set with 3 stars.
		0657	Adapter for application of RH driving tools (15cm).
		ASTARDEXD034	RH fingerstar diameter 54cm for Expo complete with feeler and feeler pin holder (blue - hard).
		ASTARDEXD032	RH fingerstar diameter 54cm (blue - hard).
		1341	RH hydraulic system kit to install driving accessories. Only when ordering.
		1818	RH mower head complete with adapter, feeler and feeler holder.
		ATRFCDX022	RH hydraulic short wires mower head with gear motor and oscillating adapter.
		1150	RH hydraulic rotary brush with gear motor and oscillating adapter.
		0720	RH traction mower head with blades or strings diameter 50cm.
		ATRBLDX053	RH traction mower head with strings diameter 50cm.
		AFRCLEXDX021	RH circular cutter hydraulic kit for 55cm or 65cm inter-row blade.
		1371	RH disk traction non-driving toothed disk diameter 40cm with working angle register.
		1777	RH 2 kit disks traction non-driving toothed disks diameter 40cm with working angle register.
		MVENTPDX034	Carriage for ventral support
