VENTRAL B

Machine features

  • RH inter-row ventral kit with cm 45 - 55 - 65 inter-row blade (to specify during the order) controlled by manual mechanical emergency blade return
  • System work in floating mode adjusting the push practiced on the utensil through hydraulic dimmer
  • Lateral hydraulic double effect inclination with 2 quick tractor couplings
  • Ascent and descent system with double effect cylinder with 2 quick tractor couplings
  • Toothed wheel for work depth adjustment
  • Adapter to apply ridger bit disc (single / double) or starcut blade set ( at 2 / 3 stars)
  • Kit is supplied without flanging to be applied to tractor without widening and without an independent hydraulic supply system, using tractor hydraulic supply system
  • On demand, We offer an optional system for those who have tractors without suitable systems (rif. CODE 1004)



Contact request

Fille the form to get in touch.
The marked fields with * are required

Configurator

Select model

Modello Code Minimum power Lenght Height Width Weight
Ventral B 1379 30 65 100 70 250




Blade/s


Industry 4.0

Select optionals

Code Description
Hydraulic 3-point control unit with oil including tank, double heat exchanger, multiplier, pump, filter, hoses, priority flow adjustment valve with 0 to 40 l/min manual variator, pressure gauge, pair of quick couplings (useful also to apply leaf strippers, polesetters, rotary brushes, augers, rakes for pruning, binders and cutting machines). 1004

Hydraulic 3-point control unit with oil including tank, double heat exchanger, multiplier, pump, filter, hoses, priority flow adjustment valve with 0 to 40 l/min manual variator, pressure gauge, pair of quick couplings (useful also to apply leaf strippers, polesetters, rotary brushes, augers, rakes for pruning, binders and cutting machines).

Electrohydraulic general command valves system general (applicable only during the order) complete of: - Patented RH NO-STOP valve for traction applications.; -Electrohydraulic distributor 3 elements (6 positions) to control 3 double effect cylinders with multifunction joystick and general control box; -Button for feeler pin deactivation; -Button for immediate rotary brush wire rotation stop. For the feeding we need on tractor 1 oil flow of 30liters/min to 200bar and a good cooling oil system (need only 2 quick tractor couplings). 1412

Electrohydraulic general command valves system general (applicable only during the order) complete of: - Patented RH NO-STOP valve for traction applications.; -Electrohydraulic distributor 3 elements (6 positions) to control 3 double effect cylinders with multifunction joystick and general control box; -Button for feeler pin deactivation; -Button for immediate rotary brush wire rotation stop. For the feeding we need on tractor 1 oil flow of 30liters/min to 200bar and a good cooling oil system (need only 2 quick tractor couplings).

Electrohydraulic cast iron distributor with multifunction joystick to operate 3 double effect cylinders and 1 electrohydraulic emergency return (applicable only when ordering). 1136

Electrohydraulic cast iron distributor with multifunction joystick to operate 3 double effect cylinders and 1 electrohydraulic emergency return (applicable only when ordering).

Electrohydraulic cast iron distributor with multifunction joystick to operate 2 double effect cylinders and  1  electrohydraulic emergency return (applicable only when ordering). 1344

Electrohydraulic cast iron distributor with multifunction joystick to operate 2 double effect cylinders and 1 electrohydraulic emergency return (applicable only when ordering).

4m power cable (necessary for tractors without 3-pole female socket). 1190

4m power cable (necessary for tractors without 3-pole female socket).

Power cable 4m extension. 1411

Power cable 4m extension.

RH adjustable ground cover with shock absorber. (pay attention to the overall dimensions when flanging) 1684

RH adjustable ground cover with shock absorber. (pay attention to the overall dimensions when flanging)

Extensible lateral hydraulic widening 50cm with 2 quick couplings (without flanging to be applied to tractor). 1441

Extensible lateral hydraulic widening 50cm with 2 quick couplings (without flanging to be applied to tractor).

RH cover fin extension for ground fender with shock absorber code 1684. 1816

RH cover fin extension for ground fender with shock absorber code 1684.

RH kit cover fin extension for adjustable reinforced ground fender code 1684 with rise strap. APRTEESND034

RH kit cover fin extension for adjustable reinforced ground fender code 1684 with rise strap.

Adapter to apply contemporarily front starcut blade set at 2/3 stars and rare fingerstar. 1437

Adapter to apply contemporarily front starcut blade set at 2/3 stars and rare fingerstar.

Adapter to apply ridger bit disc or starcut blade set. 1665

Adapter to apply ridger bit disc or starcut blade set.

Fingerstar diameter 54cm with predisposition for application on parallelogram cylinder (blue - hard). ASTARDEXD031

Fingerstar diameter 54cm with predisposition for application on parallelogram cylinder (blue - hard).

RH fingerstar diameter 70cm (red - hard). ASTARDEXD026

RH fingerstar diameter 70cm (red - hard).

RH fingerstar diameter 70cm with adapter, feeler and feeler pin holder (red - hard). ASTARDFRD008

RH fingerstar diameter 70cm with adapter, feeler and feeler pin holder (red - hard).

Blade with clod breaker, fin and feeler 45cm for Orchard (additionally to the standard blade). ALAMAFRU013

Blade with clod breaker, fin and feeler 45cm for Orchard (additionally to the standard blade).

Blade with clod breaker, fin and feeler 55cm for Orchard (additionally to the standard blade). 0942

Blade with clod breaker, fin and feeler 55cm for Orchard (additionally to the standard blade).

Blade with clod breaker, fin and feeler 65cm for Orchard (additionally to standard blade). ALAMAFRU006

Blade with clod breaker, fin and feeler 65cm for Orchard (additionally to standard blade).

Blade with clod breaker, fin and feeler 85cm for Orchard (additionally to standard blade). ALAMAFRU007

Blade with clod breaker, fin and feeler 85cm for Orchard (additionally to standard blade).

RH 45cm inter-row plant lifting ploughshare. 1187

RH 45cm inter-row plant lifting ploughshare.

RH 55cm inter-row plant lifting ploughshare. 1268

RH 55cm inter-row plant lifting ploughshare.

Universal no traction adjustable ridger bit disc diameter 40cm. The code 1437 or 1665 or 1667 must be applied. 1264

Universal no traction adjustable ridger bit disc diameter 40cm. The code 1437 or 1665 or 1667 must be applied.

RH no traction adjustable serrated ridger 2-discs diameter 40cm complete with cleaner on first disk. 1312

RH no traction adjustable serrated ridger 2-discs diameter 40cm complete with cleaner on first disk.

RH starcut blade 2 stars. We suggest to use it in combination with fingerstar. Code 1458 or 1666 must be applied. 1699

RH starcut blade 2 stars. We suggest to use it in combination with fingerstar. Code 1458 or 1666 must be applied.

RH starcut blade set with 3 stars. 1730

RH starcut blade set with 3 stars.

RH 3 kit disks non-traction non-driving toothed disks diameter 40cm. 1201

RH 3 kit disks non-traction non-driving toothed disks diameter 40cm.

RH adapter to apply on the fixed arm a rotary tiller or hoe or mower head or set toothed disks. 1203

RH adapter to apply on the fixed arm a rotary tiller or hoe or mower head or set toothed disks.

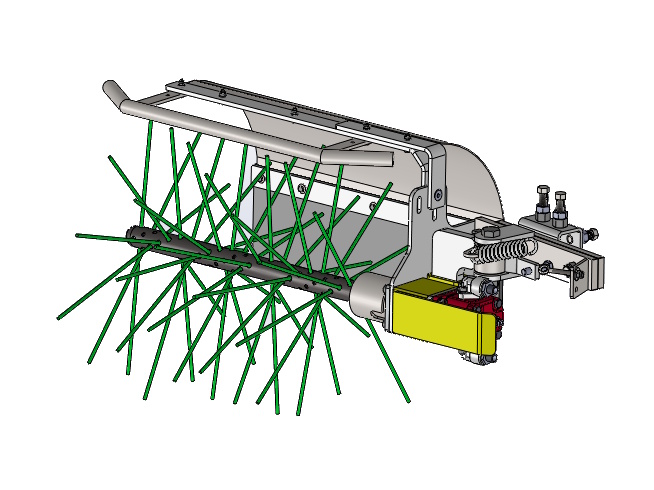

RH hydraulic rotary brush for Orchard with RH adapter. 1150/FDX

RH hydraulic rotary brush for Orchard with RH adapter.

RH traction mini-shredder head 80cm complete with roller, feeler pin and floating adapter. 1462

RH traction mini-shredder head 80cm complete with roller, feeler pin and floating adapter.

RH traction mower head with blades diameter 50cm. 0720/FDX

RH traction mower head with blades diameter 50cm.

RH traction mini-shredder head 60cm. 0718/F

RH traction mini-shredder head 60cm.

RH traction rotary plant lifter with 4 shedding fins diameter 40cm for Orchard. 1042/FDX

RH traction rotary plant lifter with 4 shedding fins diameter 40cm for Orchard.

RH kit to transform the rotary plant lifter in cutter diameter 40cm to 3 hoes. AKTSFDQTZ002

RH kit to transform the rotary plant lifter in cutter diameter 40cm to 3 hoes.

RH traction rotary plant lifter with 4 shedding fins diameter 50cm for Orchard. 1043/FDX

RH traction rotary plant lifter with 4 shedding fins diameter 50cm for Orchard.

RH circular cutter hydraulic kit for 55cm or 65cm inter-row blade. AFRCLEXDX021

RH circular cutter hydraulic kit for 55cm or 65cm inter-row blade.

RH kit to transform the rotary plant lifter in cutter diameter 50cm to 4 hoes. AKTSFDCQZ003

RH kit to transform the rotary plant lifter in cutter diameter 50cm to 4 hoes.

RH traction 3-hoes hydraulic circular cutter diam. 40cm with brush for Orchard. AFRECSQDX013

RH traction 3-hoes hydraulic circular cutter diam. 40cm with brush for Orchard.

RH traction 3-hoes hydraulic circular cutter diameter 40cm for Orchard. AFRECQCDX026

RH traction 3-hoes hydraulic circular cutter diameter 40cm for Orchard.

RH kit to transform the cutter in rotary plant lifter diameter 40cm to 4 fins. 1149

RH kit to transform the cutter in rotary plant lifter diameter 40cm to 4 fins.

RH traction 4-hoes hydraulic circular cutter diameter 50cm for Orchard. AFRECCCDX014

RH traction 4-hoes hydraulic circular cutter diameter 50cm for Orchard.

RH kit to transform the cutter in rotary plant lifter diameter 50cm to 4 fins. 1093

RH kit to transform the cutter in rotary plant lifter diameter 50cm to 4 fins.

RH 2-disc traction moving disk for Ventral B with feeler and feeler holder. ADSCMFDXD001

RH 2-disc traction moving disk for Ventral B with feeler and feeler holder.

RH traction disk set with 3 plant lifting disks diameter 36cm for Orchard and Ventral B 0717/FDX

RH traction disk set with 3 plant lifting disks diameter 36cm for Orchard and Ventral B

RH traction 36cm diameter 4-lifting disc for Orchard and Ventral B 1276

RH traction 36cm diameter 4-lifting disc for Orchard and Ventral B

RH traction 36cm diameter 5-lifting disc for Orchard and Ventral B 1316

RH traction 36cm diameter 5-lifting disc for Orchard and Ventral B

RH stump cleaner on 2/3 traction disk set plant lifting disks diameter 36cm. 1384

RH stump cleaner on 2/3 traction disk set plant lifting disks diameter 36cm.

RH 3 kit disks no-traction driving toothed disks diameter 40cm. 1775

RH 3 kit disks no-traction driving toothed disks diameter 40cm.

RH 4 kit disks no-traction driving toothed disks diameter 40cm. 1773

RH 4 kit disks no-traction driving toothed disks diameter 40cm.

RH 5 disks kit no-traction driving toothed disks diameter 40cm. 1757

RH 5 disks kit no-traction driving toothed disks diameter 40cm.

Carriage for ventral support MVENTPDX034

Carriage for ventral support


The marked fields with * are required

Table form

Model Code Minimum power Lenght Height Width Weight
Ventral B 1379 30 65 100 70 250
