Arrizza s.r.l.

Machine features

Tool-carrier with hydraulic widening
Available in version with rear three point couplings
Power take-off central with cardan
Hydraulic predisposition for traction utensils application RH and LH with FAUCET KIT
Double multiplier kit (Gr3) with 5 pumps, hoses, filters, tank and oil
Double heat exchanger with double thermostat
12-channel multifunction electronic control unit
Electro-hydraulic distributor to control 5 double effect cylinders
85 - 65 - 55 cm (to specify during the order) RH and LH sides inter-row blades with 7+1 multifunction joystick for electrohydraulic individually and simultaneously blades emergency return
RH and LH toothed hydraulic wheels for depth adjustment and lateral stability control with multifunctional joystick
RH and LH lateral hydraulic simultaneously widening with central rack and 2 cylinders double effect with multifunction joystick
RH and LH hydraulic tool inclinations with multifunction joystick
Priority Valve to manage the speed and total esclusion of inter-row systems RH and LH

Contact request

Fille the form to get in touch.
The marked fields with * are required

Name, last name*

Email*

Message

I accept Terms and conditions

Configurator

Select model

Model	Code	Minimum power	Machine width	Min width row	Max width row	Weight

Double Orchard 1 rear	1250	70	165	200	470	580
Double Orchard 2 rear	1238	70	240	310	560	645

Select optionals

		Code	Description
		1190	4m power cable (necessary for tractors without 3-pole female socket).
		1411	Power cable 4m extension.
		1191	Extension 3m cable for multifunction joysticks 7+1.
		ECABLAGGU015	Extension 3m cable for multifunction joysticks 9+1.
		1052/F	RH button for feeler deactivation to work. Only when ordering.
		1053/F	LH button for feeler deactivation to work. Only when ordering.
		1158/F	Push button for immediate RH rotary brush/mower head wire rotation stop. Applicable only when ordering.
		1159/F	Push button for immediate LH rotary brush/mower head wire rotation stop. Applicable only when ordering.

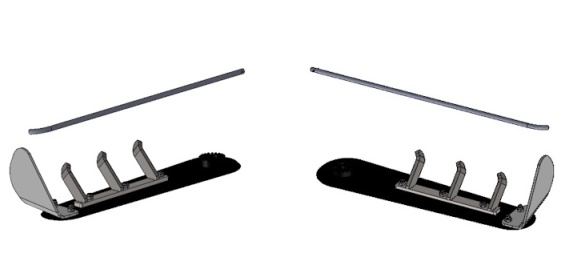

		0712	Pair of blades with clods breaker, fin and feeler 55cm for Orchard (additionally at the standard blades).

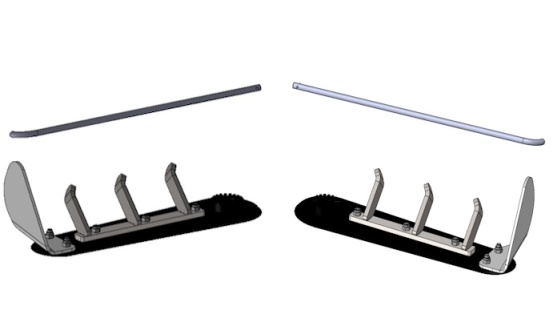

		0699	Pair of blades with clod breaker, fin and feeler 65cm for Orchard (additionally at the standard blades).

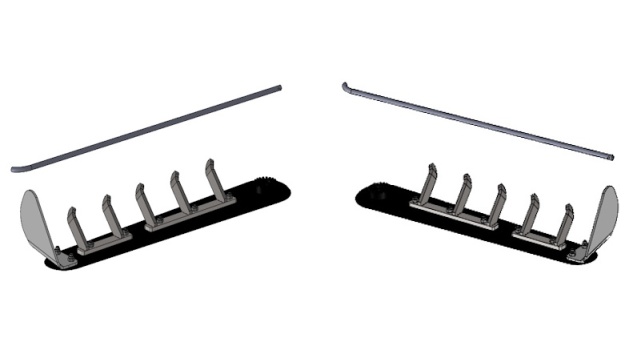

		0700	Pair of blades with clod breaker, fin and feeler 85cm for Orchard (additionally at the standard blades).
		1245	RH ground fender for Frutteto rear version equipped with extension fin and adjustments depth. This rear version of the ground fender can be applied ONLY with 55cm inter-row blade, 40/50 cm circular cutters and rotary plant lifter, traction driving 3-disc. Note The codes 1245, ASTARDFRD007 e ASTARDFRD008 can be inserted in the configuration but the machine can be equipped with only one option at a time..
		1246	LH ground fender for Frutteto rear version equipped with extension fin and adjustments depth. It's applicable ONLY with 55cm inter-row blade, 40/50cm circular cutters and rotary plant lifters, traction disk set with 3 plant lifting disks. Note The codes 1246, ASTARDFRS007 e ASTARDFRS006 can be inserted in the configuration but the machine can be equipped with only one option at a time..
		1296	RH length adjustable delimiter disc for ground fender Frutteto rear version.
		1297	LH length adjustable delimiter disc for ground fender Frutteto rear version.
		1730	RH starcut blade set with 3 stars.
		1731	LH starcut blade set with 3 stars.
		1201	RH 3 kit disks non-traction non-driving toothed disks diameter 40cm.
		1286	LH 3 kit disks non-traction non-driving toothed disks diameter 40cm.
		1279	RH 4 kit disks non-traction non-driving toothed disks diameter 40cm.
		1280	LH 4 kit disks non-traction non-driving toothed disks diameter 40cm.
		1282	RH 5 kit disks non-traction non-driving toothed disks diameter 40cm.
		1281	LH 5 kit disks non-traction non-driving toothed disks diameter 40cm.
		ASTARDFRD010	RH fingerstar diameter 54cm with adapter (blue - hard).
		ASTARDFRS009	LH fingerstar diameter 54cm with adapter (blue - hard).
		ASTARDFRD007	RH fingerstar diameter 70cm with adapter (red - hard). Note The codes 1245, ASTARDFRD007 e ASTARDFRD008 can be inserted in the configuration but the machine can be equipped with only one option at a time..
		ASTARDFRS007	LH fingerstar diameter 70cm with adapter (red - hard). Note The codes 1246, ASTARDFRS007 e ASTARDFRS006 can be inserted in the configuration but the machine can be equipped with only one option at a time..
		ASTARDFRD008	RH fingerstar diameter 70cm with adapter, feeler and feeler pin holder (red - hard). Note The codes 1245, ASTARDFRD007, ASTARDFRD008 e ASTARDFRD008 can be inserted in the configuration but the machine can be equipped with only one option at a time..
		ASTARDFRS006	LH fingerstar diameter 70cm with adapter, feeler and feeler pin holder (red - hard). Note The codes 1246, ASTARDFRS007 e ASTARDFRS006 can be inserted in the configuration but the machine can be equipped with only one option at a time..
		1203/SX	LH adapter to apply, on the fixed arm, a rotary tiller or hoe or mower head or set toothed disks.
		1820	RH mower head with short wires from 28 to 36cm and adapter for Orchard.
		1821	LH mower head short wires from 28 to 36cm and adapter for Orchard.

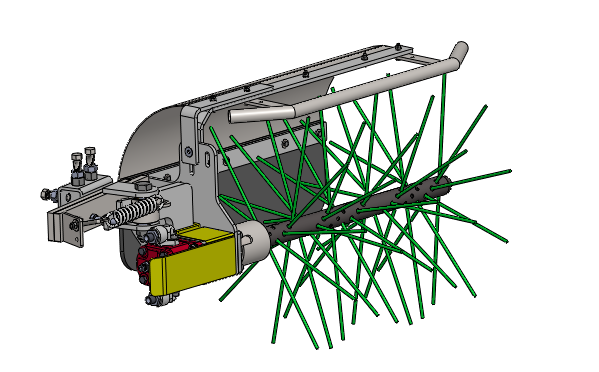

		1150/FDX	RH hydraulic rotary brush for Orchard and Ventral B with adapter.

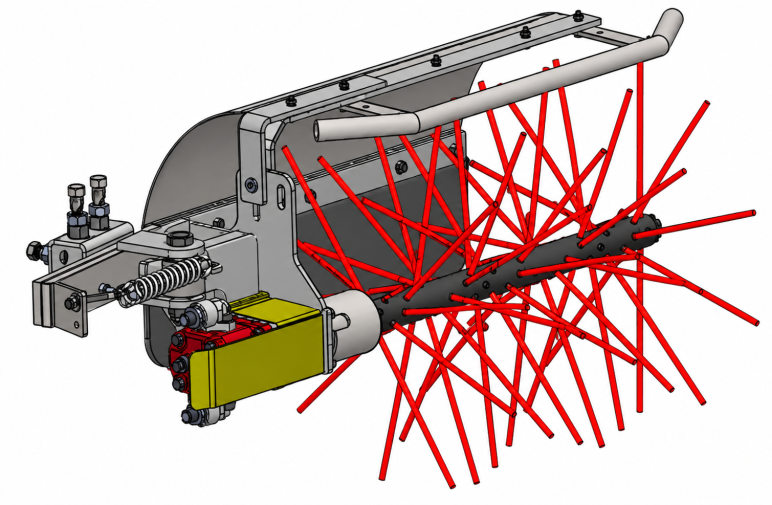

		ASPOLFRSX001	LH hydraulic rotary brush for Orchard with adapter.
		1253	RH vertical wires mower head with adapter for orchard versions, hydraulic tipping and auto-return in shape system.
		1254	LH vertical wires mower with adapter for orchard versions, hydraulic tipping and auto-return in shape system.
		0720/FDX	RH traction mower head with blades diameter 50cm.
		0720/FSX	LH traction mower head with blades diameter 50cm.
		ATRBLDX052	RH traction mower head with strings diameter 50cm.
		ATRBLDX052	LH traction mower head with strings diameter 50cm.
		1318	2th RH traction mower head with blades diameter 50cm.
		1319	2th LH traction mower head with blades diameter 50cm.
		ATRBLDX023	2th RH traction mower head with wires diameter 50cm.
		ATRBLDX023	2th LH traction mower head with wires diameter 50cm.

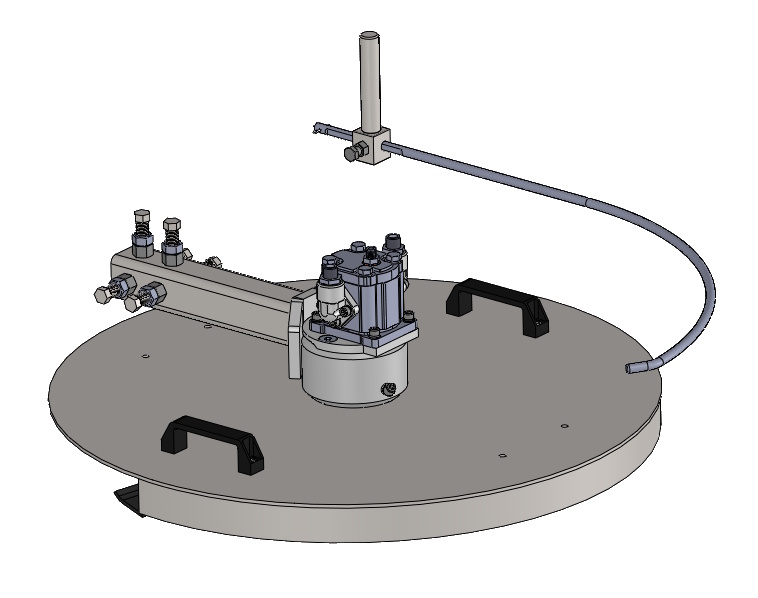

		ATRBLDX051	RH traction mower head with blades diameter 80cm (not applicable on Double orchard 1).

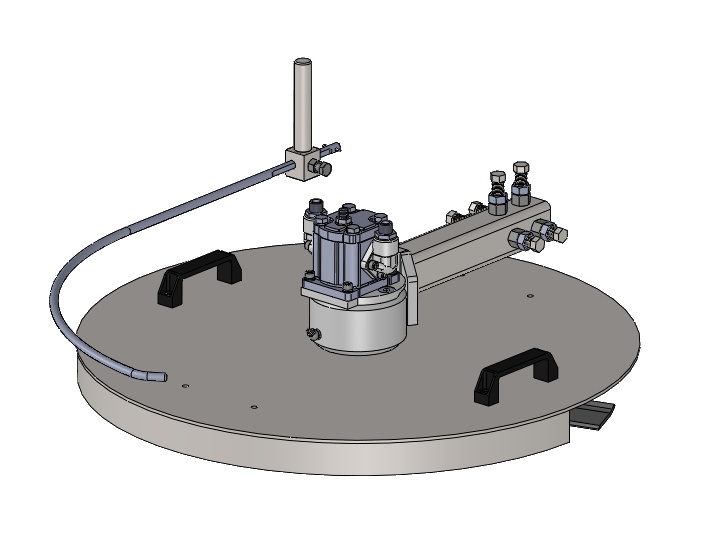

		ATRBLSX008	LH traction mower head with blades diameter 80cm (not applicable on Double orchard 1).
		0718/F	RH traction mini-shredder head 60cm.
		1040/F	LH traction mini-shredder head 60cm.
		1462	RH traction mini-shredder head 80cm complete with roller, feeler pin and floating adapter.
		AMTRCFSXO001	LH traction mini-shredder head 80cm complete with roller, feeler pin and floating adapter.
		1042/FDX	RH traction rotary plant lifter with 4 shedding fins diameter 40cm for Orchard.
		1044/FSX	LH traction rotary plant lifter with 4 shedding fins diameter 40cm.
		1043/FDX	RH traction rotary plant lifter with 4 shedding fins diameter 50cm for Orchard.
		1045/FSX	LH traction rotary plant lifter with 4 shedding fins diameter 50cm.
		1099	Nr. 2 Kit to transform the rotary plant lifter in cutter 50cm diameter to 4 hoes.

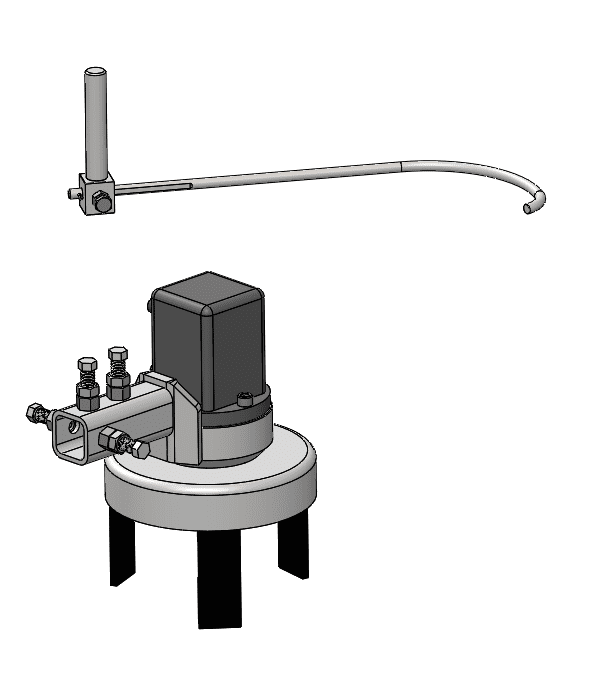

		1822	RH traction 3-hoes hydraulic circular cutter diameter 25cm complete with low engine.
		AFRECSQDX013	RH traction 3-hoes hydraulic circular cutter diam. 40cm with brush for Orchard.
		AFRECSQSX006	LH traction 3-hoes hydraulic circular cutter diameter 40cm with brush for Orchard.
		AFRECQCDX026	RH traction 3-hoes hydraulic circular cutter diameter 40cm for Orchard.
		AFRECQCSX006	LH traction 3-hoes hydraulic circular cutter diameter 40cm for Orchard.
		AFRECCCDX014	RH traction 4-hoes hydraulic circular cutter diameter 50cm for Orchard.
		AFRECCCSX007	LH traction 4-hoes hydraulic circular cutter diameter 50cm.
		AFRECSCSX001	LH traction hydraulic circular cutter, diameter 65cm complete with 6-hoes. Note The codes 1768, 1406 e AFRECSCSX001 can be inserted in the configuration but the machine can be equipped with only one option at a time..
		AFRECSCDX001	RH traction hydraulic circular cutter, 65cm diameter complete with 6-hoes . Note The codes 1767, 1405 e AFRECSCDX001 can be inserted in the configuration but the machine can be equipped with only one option at a time..
		1294	Nr.2 Kit to change the circular cutter into a rotative plant lifter 50cm diameter to 4 fins.
		2001	RH management kit for 2 circular cutters on Orchard (one on fixed arm adapter and one on inter-row system, only when ordering)
		2002	LH management kit for 2 circular cutters on Orchard (one on fixed arm adapter and one on inter-row system, only when ordering).
		AFRECCCDX012	2th RH traction 4-hoes hydraulic circular cutter 50cm diameter (only when ordering).
		AFRECCCSX005	2th LH traction 4-hoes hydraulic circular cutter 50cm diameter (only when ordering).
		0717/FDX	RH traction disk set with 3 plant lifting disks diameter 36cm for Orchard and Ventral B
		1038/FSX	LH traction disk set with 3 plant lifting disks diameter 36cm for Orchard.
		1276	RH traction 36cm diameter 4-lifting disc for Orchard and Ventral B
		1277	LH traction 36cm diameter 4-lifting disc for Orchard.
		1316	RH traction 36cm diameter 5-lifting disc for Orchard and Ventral B
		1317	LH traction 36cm diameter 5-lifting disc for Orchard.
		1384	RH stump cleaner on 2 / 3 / 4 traction disk set plant lifting disks diameter 36cm.
		1402	LH stump cleaner on traction disk set with 2/3 plant lifting disks diameter 36cm.
		1203	RH adapter to apply on the fixed arm a rotary tiller or hoe or mower head or set toothed disks.
		1775	RH 3 kit disks no-traction driving toothed disks diameter 40cm.
		1776	LH 3 kit disks traction non-driving toothed disks diameter 40cm.
		1773	RH 4 kit disks no-traction driving toothed disks diameter 40cm.
		1774	RH 4 kit disks traction non-driving toothed disks diameter 40cm.
		1757	RH 5 disks kit no-traction driving toothed disks diameter 40cm.
		1772	LH 5 kit disks traction non-driving toothed disks diameter 40cm.
