Arrizza s.r.l.

Machine features

Cultivator with hydraulic side widening, central spring with reversible ploughshares and sides fins, 2 front ramps with reversible ploughshares and external fins
Pumps connected directly to the tractor power take-off
Kit including multiplier triple pump, hoses, filters, tank with special oil for high temperatures
Double heat exchanger with double thermostat
12-channel multifunction electronic control unit
Electro-hydraulic distributor to control 5 double effect cylinders
45 cm RH and LH side inter-row blades with 7+1 multifunction joystick for electrohydraulic separately and simultaneously emergency blades return
Bulldozer-like tilling spurs with lateral fin
Hydraulic roller adjustment with multifunction joystick
RH hydraulic ascent and descent system with multifunction joystick
LH hydraulic ascent and descent system with multifunction joystick
RH and LH independent lateral widening with multifunction joystick

Contact request

Fille the form to get in touch.
The marked fields with * are required

Name, last name*

Email*

Message

I accept Terms and conditions

Configurator

Select model

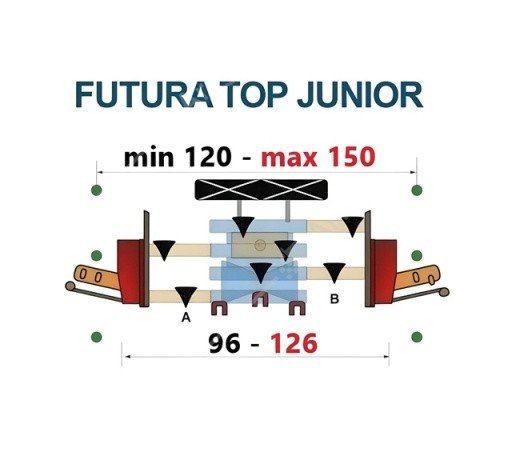

	Model	Code	Minimum power	Widening	Machine width	Min width row	Max width row	Weight

	Futura TOP Junior	1120	30	15 + 15	93 / 123	120	150	620

Blade/s

45 cm.

55 cm.

65 cm.

85 cm.

Industry 4.0

Industry 4.0 click here for info...

Select optionals

		Code	Description
		1163	Extra charge for folding roller with 2 quick tractor couplings (2 hydraulic cylinders roll-over and adjustment (applicable only when ordering)
		1164	Electro-mechaninc adjustment depth holes roller system (optional applicable only when ordering - only for Futura version 3S)
		1190	4m power cable (necessary for tractors without 3-pole female socket).
		1411	Power cable 4m extension.
		1192	Extension 3m cable for 8-channel multi-function joystick.
		1052	RH button for feeler deactivation to work. Only when ordering.
		1053	LH button for feeler deactivation to work. Only when ordering.
		0698	RH hydraulic inter-row inclination with 2 quick tractor couplings. The width of the whole machine increases by 3,5cm. Only when ordering.
		0724	LH hydraulic inter-row inclination with 2 quick tractor couplings. The width of the whole machine increases by 3,5cm. Only when ordering.
		1056	RH hydraulic inter-row inclination controlled by multifunction joystick. Dimension 3,5cm. Only when ordering.
		1057	LH hydraulic inter-row inclination controlled by multifunction joystick. Dimension 3,5cm. Only when ordering.
		0982	RH blade with clod breaker, fin and feeler 45cm (additionally at the standard blade).
		0982/SX	LH blade with clod breaker, fin and feeler 45cm (additionally at the standard blade).
		0695	RH blade with clod breaker, fin and feeler 65cm (additionally to standard blade).
		0695/SX	LH blade with clod breaker, fin and feeler 65cm (additionally to standard blade).
		1160	RH non-stop feeler pin holder.
		1161	LH no-stop feeler pin holder.
		1085	RH oscillating feeler pin holder adjustable in height.
		1086	LH oscillating feeler pin holder adjustable in height.
		1187	RH 45cm inter-row plant lifting ploughshare.
		AVOMSQCDP009	RH 45cm inter-row plant lifting ploughshare with specify stump cleaner.
		1188	LH 45cm inter-row plant lifting ploughshare.
		AVOMSQCSP024	LH 45cm inter-row plant lifting ploughshare with specify stump cleaner.
		1268	RH 55cm inter-row plant lifting ploughshare.
		AVOMSCCDP021	RH 55cm inter-row plant lifting ploughshare with specify stump cleaner.
		1269	LH 55cm inter-row plant lifting ploughshare.
		AVOMSCCSP009	LH 55cm inter-row plant lifting ploughshare with specify stump cleaner.
		0488	RH no traction bulldozer-disk diameter 32cm.
		1157	LH no traction bulldozer-disk diameter 32cm.
		1267	Pair of adjustable no-traction universal rounded tiller discs diameter 36cm.
		1265	Pair of universal no traction adjustable ridger bit discs diameter 40cm.
		1419	RH starcut blade set with 2 stars.
		1420	LH starcut blade set with 2 stars.
		1730	RH starcut blade set with 3 stars.
		1731	LH starcut blade set with 3 stars.
		1341	RH hydraulic system kit to install driving accessories. Only when ordering.
		1342	LH hydraulic system to install driving accessories. Only when ordering.
		AFRCLEXDX021	RH circular cutter hydraulic kit for 55cm or 65cm inter-row blade.
		AFRCLEXSX007	LH circular cutter hydraulic kit for 55cm or 65cm inter-row blade.
