EXPO DOUBLE ECO

Machine features

  • Tool-carrier with RH and LH lateral hydraulic simultaneously widening with LH side cut-off and 2 quick tractor couplings (is possible to choose independent side lateral hydraulic widening with 4 quick tractor couplings: NO ADDITIONAL COST - ONLY WHEN ORDERING -TELESCOPIC versions always require 4 quick tractor couplings to the tractor)
  • Available in version with front or rear three-point coupling
  • On demand: power take-off high (for rubber-tyred tractors - except S version), low (for crawler tractors) or with pumps directly connected to the tractor power take-off (for rubber-tyred and crawler tractors)
  • Kit including multiplier double pump, hoses, filter, tank and oil
  • Double heat exchanger with double thermostat 2-channel electronic control unit with general alarm 55 cm
  • RH and LH side inter-row blades with double channel joystick for electrohydraulic separately and simultaneously emergency blades return
  • Bulldozer-like tilling spurs
  • RH and LH toothed wheels for depth adjustment and side stability control




Contact request

Fille the form to get in touch.
The marked fields with * are required

Configurator

Select model

Model Code Minimum power Widening Machine width Min width row Max width row Weight
Expo double ECO 1S 1089 50 25 + 25 104 / 154 144 204 465
Expo double ECO 1 0995 50 30 + 30 114 / 174 154 224 500
Expo double ECO 2 0996 50 40 + 40 130 / 210 170 260 535
Expo double ECO 2X 1126 50 50 + 50 135 / 235 175 285 555
Expo double ECO 3 0775 50 50 + 50 145 / 245 185 295 570
Expo double ECO 4 0997 50 50 + 50 197 / 297 237 347 605
Expo double ECO 4X 1663 50 100 + 100 237 / 437 277 487 640
Expo double ECO 1S telescopic 1236 50 35 + 35 105 / 175 145 225 505
Expo double ECO 1 telescopic 1237 50 50 + 50 113 / 213 153 263 540
Version

PTO

Power take-off

Widening

Blade/s


Industry 4.0

Select optionals

Code Description
Triple power take-off with cardan transmission for front versions: front 540rpm right, front 540rpm left, front 1000rpm left. Not available on the 1XS, 1S, 1, 2 and Telescopic versions. Applicable only when ordering. CMOLTIPL029

Triple power take-off with cardan transmission for front versions: front 540rpm right, front 540rpm left, front 1000rpm left. Not available on the 1XS, 1S, 1, 2 and Telescopic versions. Applicable only when ordering.

Flow diverter system to control 2 double effect cylinders separately with only 2 quick tractor couplings. 1287

Flow diverter system to control 2 double effect cylinders separately with only 2 quick tractor couplings.

Reversibility complete of front/rear 3-points coupling and triple power take-off with cardan: RH 540rpm front, RH 540 rpm rare, LH 1000rpm rare. Not available on versions 1XS, 1S, 1 and telescopic. Only when ordering. 1362

Reversibility complete of front/rear 3-points coupling and triple power take-off with cardan: RH 540rpm front, RH 540 rpm rare, LH 1000rpm rare. Not available on versions 1XS, 1S, 1 and telescopic. Only when ordering.

Fourth power take-off 540 rpm LH. Needed reversibility complete code 1362. Only when ordering. 1693

Fourth power take-off 540 rpm LH. Needed reversibility complete code 1362. Only when ordering.

4m power cable (necessary for tractors without 3-pole female socket). 1190

4m power cable (necessary for tractors without 3-pole female socket).

Power cable 4m extension. 1411

Power cable 4m extension.

3m extension cable for single channel and dual-channel joystick. EJOYSCVPL004

3m extension cable for single channel and dual-channel joystick.

Hydraulic Tubes Extensions kit (suction and pressure) 5,50m, quick couplings for oil for dual pump. 1195

Hydraulic Tubes Extensions kit (suction and pressure) 5,50m, quick couplings for oil for dual pump.

Hydraulic Extensions tube Kit (suction and pressure) with 5,50m lenght for dual pump for greater oil flow (whitout quick couplings). 1198

Hydraulic Extensions tube Kit (suction and pressure) with 5,50m lenght for dual pump for greater oil flow (whitout quick couplings).

Adding cost for RH and LH vulcanized rubber wheels with steel core installation (in substitution of standard wheels). 2035

Adding cost for RH and LH vulcanized rubber wheels with steel core installation (in substitution of standard wheels).

Push button for immediate RH rotary brush/mower head wire rotation stop. Applicable only when ordering. 1158/F - D ECO

Push button for immediate RH rotary brush/mower head wire rotation stop. Applicable only when ordering.

Push button for immediate LH rotary brush/mower head wire rotation stop. Applicable only when ordering. 1159/F - D ECO

Push button for immediate LH rotary brush/mower head wire rotation stop. Applicable only when ordering.

RH hydraulic wheel adjustment with 2 quick tractor couplings (only when ordering). 1743

RH hydraulic wheel adjustment with 2 quick tractor couplings (only when ordering).

LH ydraulic wheel adjustment with 2 quick tractor couplings (only when ordering). 1744

LH ydraulic wheel adjustment with 2 quick tractor couplings (only when ordering).

RH hydraulic inter-row inclination with 2 quick tractor couplings. The width of the whole machine increases by 5cm. Only when ordering. 0698

RH hydraulic inter-row inclination with 2 quick tractor couplings. The width of the whole machine increases by 5cm. Only when ordering.

LH hydraulic inter-row inclination with 2 quick tractor couplings. The width of the whole machine increases by 5cm. Only when ordering. 0724

LH hydraulic inter-row inclination with 2 quick tractor couplings. The width of the whole machine increases by 5cm. Only when ordering.

RH inter-row hydraulic ascent and descent Patented system with 20cm movement and 2 quick tractor couplings. The whole wide increases by 10cm. Only when ordering. 1048

RH inter-row hydraulic ascent and descent Patented system with 20cm movement and 2 quick tractor couplings. The whole wide increases by 10cm. Only when ordering.

LH inter-row hydraulic ascent and descent Patented system with 20cm movement and 2 quick tractor couplings. The whole wide increases by 10cm. Applicable only when ordering. 1049

LH inter-row hydraulic ascent and descent Patented system with 20cm movement and 2 quick tractor couplings. The whole wide increases by 10cm. Applicable only when ordering.

RH blade with clod breaker, fin and feeler 45cm (additionally at the standard blade). 0982

RH blade with clod breaker, fin and feeler 45cm (additionally at the standard blade).

LH blade with clod breaker, fin and feeler 45cm (additionally at the standard blade). 0982/SX

LH blade with clod breaker, fin and feeler 45cm (additionally at the standard blade).

RH blade with clod breaker, fin and feeler 65cm (additionally to standard blade). 0695

RH blade with clod breaker, fin and feeler 65cm (additionally to standard blade).

LH blade with clod breaker, fin and feeler 65cm (additionally to standard blade). 0695/SX

LH blade with clod breaker, fin and feeler 65cm (additionally to standard blade).

RH blade with clod breaker, fin and feeler 85cm (additionally to standard blade). 0696

RH blade with clod breaker, fin and feeler 85cm (additionally to standard blade).

LH blade with clod breaker, fin and feeler 85cm (additionally to standard blade). 0696/SX

LH blade with clod breaker, fin and feeler 85cm (additionally to standard blade).

RH non-stop feeler pin holder. 1160

RH non-stop feeler pin holder.

LH no-stop feeler pin holder. 1161

LH no-stop feeler pin holder.

RH oscillating feeler pin holder adjustable in height. 1085

RH oscillating feeler pin holder adjustable in height.

LH oscillating feeler pin holder adjustable in height. 1086

LH oscillating feeler pin holder adjustable in height.

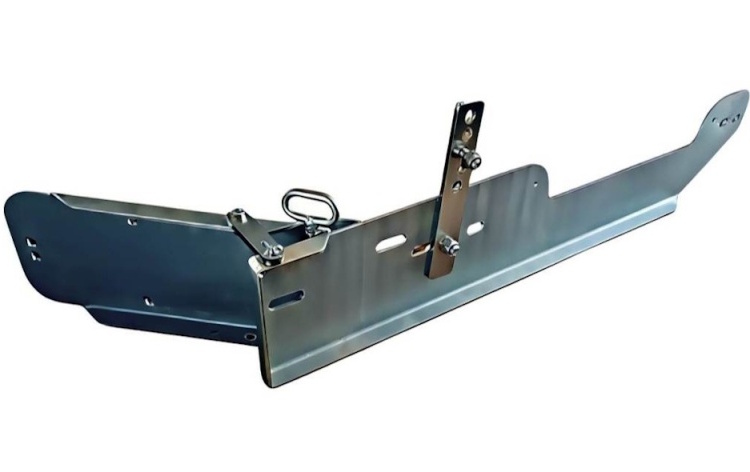

(while stocks last) - RH adjustable fender ground cover. Cannot be used at the same time as the RH lifter plough kit code 0702 and AARATROFR060. 1046

(while stocks last) - RH adjustable fender ground cover. Cannot be used at the same time as the RH lifter plough kit code 0702 and AARATROFR060.

Note

The codes 1405, 1046, AARATROFR060 e 1767 can be inserted in the configuration but the machine can be equipped with only one option at a time..

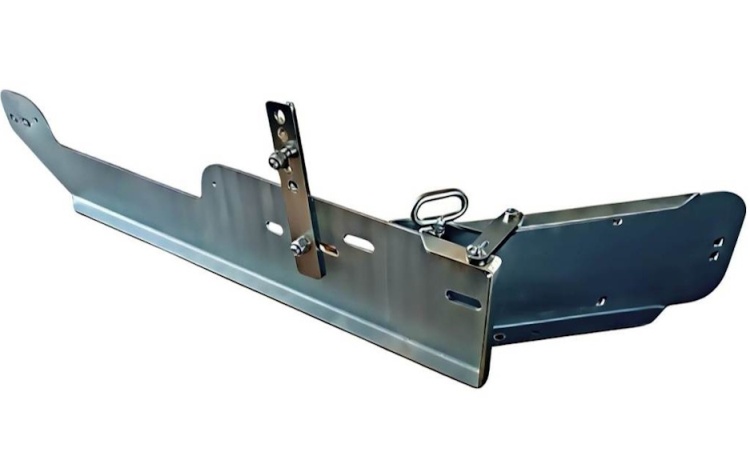

(while stocks last) - LH adjustable fender ground cover. Cannot be used at the same time as the LH lifter plough kit code 0725 and AARATROFR062. 1047

(while stocks last) - LH adjustable fender ground cover. Cannot be used at the same time as the LH lifter plough kit code 0725 and AARATROFR062.

Note

The codes 1047, 1768, 1406 e AARATROFR062 can be inserted in the configuration but the machine can be equipped with only one option at a time..

RH and LH extensions for adjustable ground fender. 1761

RH and LH extensions for adjustable ground fender.

RH reinforced adjustable fender ground cover in special steel with wear-resistant interchangeable sled. It can't use contemporary with no-traction ploughshare RH code 0702 and AARATROFR060. 1767

RH reinforced adjustable fender ground cover in special steel with wear-resistant interchangeable sled. It can't use contemporary with no-traction ploughshare RH code 0702 and AARATROFR060.

Note

The codes 1405, 1046, AARATROFR060 e 1767 can be inserted in the configuration but the machine can be equipped with only one option at a time..

LH reinforced adjustable fender ground cover in special steel with wear-resistant. Cannot be used at the same time as the LH lifter plough kit code 0725 and AARATROFR062. 1768

LH reinforced adjustable fender ground cover in special steel with wear-resistant. Cannot be used at the same time as the LH lifter plough kit code 0725 and AARATROFR062.

Note

The codes 1047, 1768, 1406 e AARATROFR062 can be inserted in the configuration but the machine can be equipped with only one option at a time..

RH and LH extension for adjustable reinforced ground fender 2052

RH and LH extension for adjustable reinforced ground fender

Kit covers fin extensions for RH and LH adjustable reinforced ground fender with rise strap. 2051

Kit covers fin extensions for RH and LH adjustable reinforced ground fender with rise strap.

RH adjustable and reinforced shock absorber. 1409

RH adjustable and reinforced shock absorber.

LH adjustable and reinforced shock absorber. 1410

LH adjustable and reinforced shock absorber.

RH ground fender with adjustable delimiter disc. Cannot be used at the same time as the RH lifter plough kit code 0702 and AARATROFR060. 1405

RH ground fender with adjustable delimiter disc. Cannot be used at the same time as the RH lifter plough kit code 0702 and AARATROFR060.

Note

The codes 1405, 1046, AARATROFR060 e 1767 can be inserted in the configuration but the machine can be equipped with only one option at a time..

LH ground fender with adjustable delimiter disc. Cannot be used at the same time as the LH lifter plough kit code 0725 and AARATROFR062. 1406

LH ground fender with adjustable delimiter disc. Cannot be used at the same time as the LH lifter plough kit code 0725 and AARATROFR062.

Note

The codes 1047, 1768, 1406 e AARATROFR062 can be inserted in the configuration but the machine can be equipped with only one option at a time..

RH stump cleaner for inter-row kit (remove the fixing plate when installing code 1247 RH vertical wires mower head). 1050

RH stump cleaner for inter-row kit (remove the fixing plate when installing code 1247 RH vertical wires mower head).

LH stump cleaner for inter-row kit (remove the fixing plate when installing code 1248 LH vertical wires mower head). 1051

LH stump cleaner for inter-row kit (remove the fixing plate when installing code 1248 LH vertical wires mower head).

RH sled for terrain with stones or superficial roots. 0483

RH sled for terrain with stones or superficial roots.

LH sled for terrain with stones or superficial roots. 1154

LH sled for terrain with stones or superficial roots.

RH 45cm inter-row plant lifting ploughshare. 1187

RH 45cm inter-row plant lifting ploughshare.

RH 45cm inter-row plant lifting ploughshare with specify stump cleaner. AVOMSQCDP007

RH 45cm inter-row plant lifting ploughshare with specify stump cleaner.

LH 45cm inter-row plant lifting ploughshare. 1188

LH 45cm inter-row plant lifting ploughshare.

LH 45cm inter-row plant lifting ploughshare with specify stump cleaner. AVOMSQCSP020 LH 45cm inter-row plant lifting ploughshare with specify stump cleaner.
RH 55cm inter-row plant lifting ploughshare. 1268

RH 55cm inter-row plant lifting ploughshare.

RH 55cm inter-row plant lifting ploughshare with specify stump cleaner. AVOMSCCDP019

RH 55cm inter-row plant lifting ploughshare with specify stump cleaner.

LH 55cm inter-row plant lifting ploughshare. 1269

LH 55cm inter-row plant lifting ploughshare.

LH 55cm inter-row plant lifting ploughshare with specify stump cleaner. AVOMSCCSP004 LH 55cm inter-row plant lifting ploughshare with specify stump cleaner.
RH plant lifting plough kit with front depth directional wheel.  0702

RH plant lifting plough kit with front depth directional wheel.

Note

The codes 1405, 1046, 0702 e 1767 can be inserted in the configuration but the machine can be equipped with only one option at a time..

LH plant lifting plough kit with front depth directional wheel.  0725

LH plant lifting plough kit with front depth directional wheel.

Note

The codes 1406, 1768, 1047 e 0725 can be inserted in the configuration but the machine can be equipped with only one option at a time..

RH plant lifting plough kit with front depth directional wheel and specify stump cleaner.  AARATROFR060

RH plant lifting plough kit with front depth directional wheel and specify stump cleaner.

Note

The codes 1405, 1046, AARATROFR060 e 1767 can be inserted in the configuration but the machine can be equipped with only one option at a time..

LH plant lifting plough kit with front depth directional wheel and specify stump cleaner.  AARATROFR062

LH plant lifting plough kit with front depth directional wheel and specify stump cleaner.

Note

The codes 1047, 1768, 1406 e AARATROFR062 can be inserted in the configuration but the machine can be equipped with only one option at a time..

RH kit adjustable ground fender cover with shock absorber complete with universal holder support for RH plant lifting plough kit with or without stump cleaner 2047

RH kit adjustable ground fender cover with shock absorber complete with universal holder support for RH plant lifting plough kit with or without stump cleaner

LH kit adjustable ground fender cover with shock absorber complete with universal holder support for LH plant lifting plough kit with or without stump cleaner 2048

LH kit adjustable ground fender cover with shock absorber complete with universal holder support for LH plant lifting plough kit with or without stump cleaner

RH no traction bulldozer-disk diameter 32cm. 0488

RH no traction bulldozer-disk diameter 32cm.

LH no traction bulldozer-disk diameter 32cm. 1157

LH no traction bulldozer-disk diameter 32cm.

Pair of adjustable no-traction universal rounded tiller discs diameter 36cm. 1267

Pair of adjustable no-traction universal rounded tiller discs diameter 36cm.

RH no traction adjustable rounded tiller disc diameter 36cm with quick tractor couplings hydraulic movement 15cm. 1782

RH no traction adjustable rounded tiller disc diameter 36cm with quick tractor couplings hydraulic movement 15cm.

LH no traction adjustable rounded tiller disc diameter 36cm with quick tractor fast hydraulic couplings. Movement 15cm. 1783

LH no traction adjustable rounded tiller disc diameter 36cm with quick tractor fast hydraulic couplings. Movement 15cm.

Pair of universal no traction adjustable ridger bit discs diameter 40cm. 1265

Pair of universal no traction adjustable ridger bit discs diameter 40cm.

LH no traction adjustable ridger bit disc diameter 40cm with quick tractor couplings and hydraulic. Movement 15cm. 1784

LH no traction adjustable ridger bit disc diameter 40cm with quick tractor couplings and hydraulic. Movement 15cm.

LH no traction adjustable ridger bit disc diameter 40cm with quick tractor couplings and hydraulic. Movement 15cm. 1785

LH no traction adjustable ridger bit disc diameter 40cm with quick tractor couplings and hydraulic. Movement 15cm.

RH no traction adjustable serrated ridger 2-discs diameter 40cm complete with cleaner on first disk. 1312

RH no traction adjustable serrated ridger 2-discs diameter 40cm complete with cleaner on first disk.

LH no traction adjustable ridger 2-discs diameter 40cm complete with cleaner on first disk. 1313

LH no traction adjustable ridger 2-discs diameter 40cm complete with cleaner on first disk.

RH starcut blade set with 2 stars. 1419

RH starcut blade set with 2 stars.

LH starcut blade set with 2 stars. 1420

LH starcut blade set with 2 stars.

RH starcut blade set with 3 stars. 1730

RH starcut blade set with 3 stars.

LH starcut blade set with 3 stars. 1731

LH starcut blade set with 3 stars.

Adapter for application of RH driving tools (15cm). 0657

Adapter for application of RH driving tools (15cm).

Adapter for application of LH driving tools (cm15). 1399

Adapter for application of LH driving tools (cm15).

RH fingerstar diameter 54cm for Expo complete with feeler and feeler pin holder (blue - hard). ASTARDEXD034

RH fingerstar diameter 54cm for Expo complete with feeler and feeler pin holder (blue - hard).

LH fingerstar diameter 54cm for Expo complete with feeler and feeler pin holder (blue - hard). ASTARDEXS009

LH fingerstar diameter 54cm for Expo complete with feeler and feeler pin holder (blue - hard).

RH fingerstar diameter 54cm (blue - hard). ASTARDEXD032

RH fingerstar diameter 54cm (blue - hard).

LH fingerstar diameter 54cm (blue - hard). ASTARDEXS007

LH fingerstar diameter 54cm (blue - hard).

RH hydraulic system kit to install driving accessories. Only when ordering. 1341

RH hydraulic system kit to install driving accessories. Only when ordering.

LH hydraulic system to install driving accessories. Only when ordering. 1342

LH hydraulic system to install driving accessories. Only when ordering.

RH vertical wires mower with adapter for Expo versions and wheel with mechanical adjustment for depth adjustment. 1247

RH vertical wires mower with adapter for Expo versions and wheel with mechanical adjustment for depth adjustment.

LH vertical mower head with adapter for Expo version and depth wheel with mechanical adjustment.  1248

LH vertical mower head with adapter for Expo version and depth wheel with mechanical adjustment.

RH mower head complete with adapter, feeler and feeler holder.  1818

RH mower head complete with adapter, feeler and feeler holder.

LH mower head short wires, complete with adapter, feeler and feeler holder.  1819

LH mower head short wires, complete with adapter, feeler and feeler holder.

RH hydraulic short wires mower head with gear motor and oscillating adapter.  ATRFCDX022

RH hydraulic short wires mower head with gear motor and oscillating adapter.

LH hydraulic short wires mower head with gear motor and oscillating adapter.  ATRFCSX012

LH hydraulic short wires mower head with gear motor and oscillating adapter.

RH hydraulic rotary brush with gear motor and oscillating adapter.  1150

RH hydraulic rotary brush with gear motor and oscillating adapter.

LH hydraulic rotary brush with gear motor and oscillating adapter.  1151

LH hydraulic rotary brush with gear motor and oscillating adapter.

RH traction mower head with blades or strings diameter 50cm. 0720

RH traction mower head with blades or strings diameter 50cm.

RH traction mower head with strings diameter 50cm. ATRBLDX053

RH traction mower head with strings diameter 50cm.

RH traction mower head with strings diameter 50cm. ATRBLDX053

RH traction mower head with strings diameter 50cm.

LH traction mower head with blades  diameter 50cm. 0720

LH traction mower head with blades  diameter 50cm.

RH circular cutter hydraulic kit for 55cm or 65cm inter-row blade. AFRCLEXDX021

RH circular cutter hydraulic kit for 55cm or 65cm inter-row blade.

LH circular cutter hydraulic kit for 55cm or 65cm inter-row blade. AFRCLEXSX007

LH circular cutter hydraulic kit for 55cm or 65cm inter-row blade.

RH disk traction non-driving toothed disk diameter 40cm with working angle register.  1371

RH disk traction non-driving toothed disk diameter 40cm with working angle register.

LH disk traction non-driving toothed disk diameter 40cm with working angle register.  1372

LH disk traction non-driving toothed disk diameter 40cm with working angle register.

RH 2 kit disks traction non-driving toothed disks diameter 40cm with working angle register.  1777

RH 2 kit disks traction non-driving toothed disks diameter 40cm with working angle register.

LH 2 kit disks traction non-driving toothed disks diameter 40cm with working angle register.  1778

LH 2 kit disks traction non-driving toothed disks diameter 40cm with working angle register.


The marked fields with * are required

Table form

Model Code Minimum power Widening Machine width Min width row Max width row Weight
Expo double ECO 1S 1089 50 25 + 25 104 / 154 144 204 465
Expo double ECO 1 0995 50 30 + 30 114 / 174 154 224 500
Expo double ECO 2 0996 50 40 + 40 130 / 210 170 260 535
Expo double ECO 2X 1126 50 50 + 50 135 / 235 175 285 555
Expo double ECO 3 0775 50 50 + 50 145 / 245 185 295 570
Expo double ECO 4 0997 50 50 + 50 197 / 297 237 347 605
Expo double ECO 4X 1663 50 100 + 100 237 / 437 277 487 640
Expo double ECO 1S telescopic 1236 50 35 + 35 105 / 175 145 225 505
Expo double ECO 1 telescopic 1237 50 50 + 50 113 / 213 153 263 540
