SINGLE MOWER

DOUBLE MOWER HEAD TOP

Configurator loading

Machine features

  • Rear or front frame with 3-point linkage complete of 2 vertical wires mower head with rotors endowed with 56 nylon wires for mechanical weeding (total 280 mt of wires)
  • Kit with 45-liters tank, overgear, triple pump with joint cardan, filters, oil, maximum pressure regulators with manometers of constant job pressure control with double heat exchanger
  • Electrohydraulic distributor 3 elements with 7 levers multifunction joystick and control box
  • 3 wheels with mechanical adjustment for job height regulation
  • RH and LH lateral hydraulic simultaneously widening with LH side cut-off and 2 double effect cylinders commanded by multifunction joystick
  • Mowers head turnover and job positioning with 2 independent double effect cylinders commanded by multifunction joystick
  • RH and LH SIMULTANEOUSLY - SEPARATELY mower head wires rotation stopping commanded by multifunction joystick with being in unloading
  • Oscillating mower heads system during work
  • Mower heads block system for road transport

- MOWER HEADS RAPID WIRES EXTENSION

- MOWER HEADS RAPID WIRES SUBSTITUTION



Contact request

Fille the form to get in touch.
The marked fields with * are required

Configurator

Select model

Model Code Minimum power Widening Machine width Min width row Max width row Weight
Double Mower TOP 1S rear 2051 50 40 + 40 100 / 180 135 230 465
Double Mower TOP 1 rear 1252 50 60 + 60 140 / 260 175 310 510
Double Mower TOP 1 front 2053 50 60 + 60 140 / 260 175 310 560
Double mower TOP 1X rear 1711 50 60 + 60 170 / 290 205 340 525
Double mower TOP 1X front 2054 50 60 + 60 170 / 290 205 340 575
Mower double TOP 2 rear 1271 50 80 + 80 185 / 345 220 400 535
Double mower TOP 2 front 1689 50 80 + 80 185 / 345 220 400 590
Version
PTO
Widening
Agriculture Smart

Select optionals

Code Description
Flow diverter system to control 2 double effect cylinders separately with only 2 quick tractor couplings. 1287

Flow diverter system to control 2 double effect cylinders separately with only 2 quick tractor couplings.
Reversibility complete of front/rear 3-points coupling and triple power take-off with cardan: RH 540rpm front, RH 540 rpm rear, LH 1000rpm rear. Not available on versions 1XS, 1S, 1 and telescopic. Only when ordering. 1362

Reversibility complete of front/rear 3-points coupling and triple power take-off with cardan: RH 540rpm front, RH 540 rpm rear, LH 1000rpm rear. Not available on versions 1XS, 1S, 1 and telescopic. Only when ordering.
Hydraulic hoses extension to install the flow diverter directly on the tractor 0000-2

Hydraulic hoses extension to install the flow diverter directly on the tractor
Fourth power take-off 540 rpm LH. Needed reversibility complete code 1362. Only when ordering. 1693

Fourth power take-off 540 rpm LH. Needed reversibility complete code 1362. Only when ordering.
Adding cost for RH and LH vulcanized rubber wheels with steel core installation (in substitution of standard wheels - ONLY LATERAL WHEELS). 2036

Adding cost for RH and LH vulcanized rubber wheels with steel core installation (in substitution of standard wheels - ONLY LATERAL WHEELS).
4m power cable (necessary for tractors without 3-pole female socket). 1190

4m power cable (necessary for tractors without 3-pole female socket).
Power cable 4m extension. 1411

Power cable 4m extension.
Extension 3m cable for multifunction joysticks 7+1. 1191

Extension 3m cable for multifunction joysticks 7+1.
RH hydraulic mower-head tilt with 2 quick tractor couplings. The overall width increases by 6cm (except vers. 1 reversible - no extra size). (only when ordering, without additional costs, it is possible to install the inclinations controls by joystick replacing the widening controlled by only 2 quick tractor couplings) 1325

RH hydraulic mower-head tilt with 2 quick tractor couplings. The overall width increases by 6cm (except vers. 1 reversible - no extra size). (only when ordering, without additional costs, it is possible to install the inclinations controls by joystick replacing the widening controlled by only 2 quick tractor couplings)
LH hydraulic mower-head tilt with 2 quick tractor couplings. The overall width increases by 6cm (except vers. 1 reversible - no extra size). (only when ordering, without additional costs, it is possible to install the inclinations controls by joystick replacing the widening controlled by only 2 quick tractor couplings) 1326

LH hydraulic mower-head tilt with 2 quick tractor couplings. The overall width increases by 6cm (except vers. 1 reversible - no extra size). (only when ordering, without additional costs, it is possible to install the inclinations controls by joystick replacing the widening controlled by only 2 quick tractor couplings)
Hydraulic Kits with industrial quick couplings to work with rotary brushes. Only when ordering. 1754

Hydraulic Kits with industrial quick couplings to work with rotary brushes. Only when ordering.

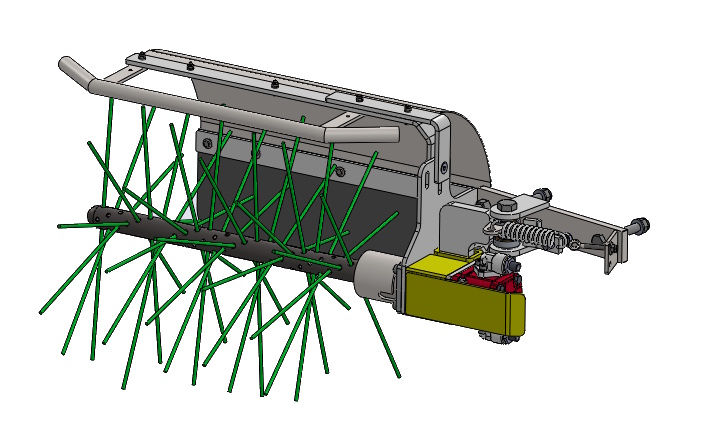

RH hydraulic rotary brush with gear motor and adaptor for Mower head.  1309

RH hydraulic rotary brush with gear motor and adaptor for Mower head.

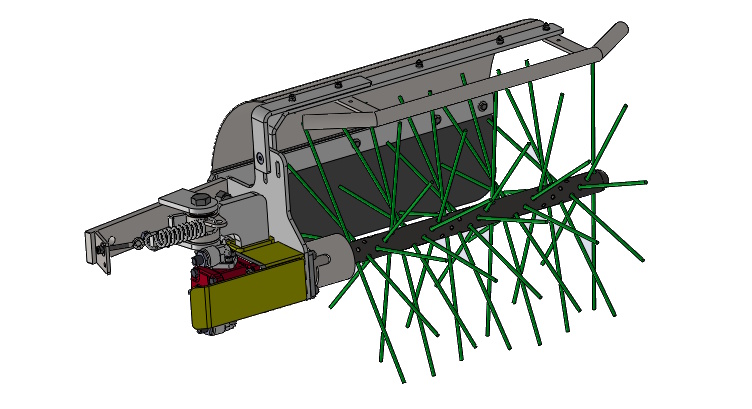

LH hydraulic rotary brush with gear motor and adaptor for Mower head.  1311

LH hydraulic rotary brush with gear motor and adaptor for Mower head.
RH lateral support with predisposition for tools installation AADTMDX035

RH lateral support with predisposition for tools installation
LH lateral support with predisposition for tools installation AADTMSX010

LH lateral support with predisposition for tools installation
RH and LH fingerstars diameter 54cm (blue - hard). 2050

RH and LH fingerstars diameter 54cm (blue - hard).
RH and LH starcut blade set with 2 stars. 1170

RH and LH starcut blade set with 2 stars.
Back to configuration New configuration

The marked fields with * are required

Table form

Model Code Minimum power Widening Machine width Min width row Max width row Weight
Double Mower TOP 1S rear 2051 50 40 + 40 100 / 180 135 230 465
Double Mower TOP 1 rear 1252 50 60 + 60 140 / 260 175 310 510
Double Mower TOP 1 front 2053 50 60 + 60 140 / 260 175 310 560
Double mower TOP 1X rear 1711 50 60 + 60 170 / 290 205 340 525
Double mower TOP 1X front 2054 50 60 + 60 170 / 290 205 340 575
Mower double TOP 2 rear 1271 50 80 + 80 185 / 345 220 400 535
Double mower TOP 2 front 1689 50 80 + 80 185 / 345 220 400 590
