SPIRAL SPRING BASIC

Configurator loading

Machine features

  • Cultivator with 30x30 spiral spring with ploughshares
  • Cage roller with mechanical adjustment
  • Depth-adjustment wheels with bearings (cannot be installed on Basic 3 -4)
  • Suitable for initial tilling and summer re-working
  • 4,5 - 21 - 26 cm ploughshares (to specify during the order)






Contact request

Fille the form to get in touch.
The marked fields with * are required

Configurator

Select model

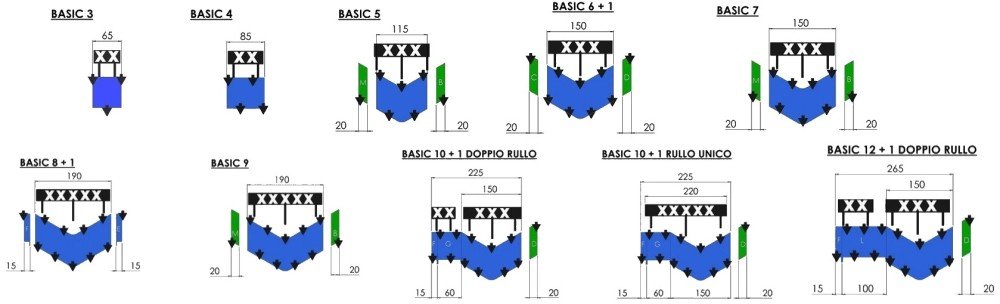

Model Code Minimum power Springs Machine height Machine width Weight
Cultivator Basic 3 0777 18 3 53 65 170
Cultivator Basic 4 0778 18 4 53 85 205
Cultivator Basic 5 0779 30 5 53 115 275
Cultivator Basic 6 + 1 0780 40 7 53 150 310
Cultivator Basic 7 0781 40 7 53 150 300
Cultivator Basic 8 + 1 0782 60 9 53 190 360
Cultivator Basic 9 0783 60 9 53 190 350
Cultivator Basic 10 + 1 0784 70 11 53 225 390
Cultivator Basic 12 + 1 0785 70 13 53 270 435
Ploughshare

Select optionals

Code Description
2-point coupling. 0660

2-point coupling.
Hinge and cylinder for lateral extension hydraulic roll-over with 2 quick tractor couplings. Can only be installed on San Salvo and Basic 10-12 when ordering. 0671

Hinge and cylinder for lateral extension hydraulic roll-over with 2 quick tractor couplings. Can only be installed on San Salvo and Basic 10-12 when ordering.
Hydraulic roller adjustment with 2 quick tractor couplings. 0659

Hydraulic roller adjustment with 2 quick tractor couplings.
Stainless steel 18/10, 380-litre curved-tank 2-row fertiliser spreader. Applicable on Aerator MAXI only when ordering.  0981

Stainless steel 18/10, 380-litre curved-tank 2-row fertiliser spreader. Applicable on Aerator MAXI only when ordering.
Nr. 3 adapters kit in boron steel complete of reversible soc and RH and LH laterals fins. 1328

Nr. 3 adapters kit in boron steel complete of reversible soc and RH and LH laterals fins.
Nr. 4 adapters in boron steel complete of reversible chisel and RH and LH laterals fins. 1329

Nr. 4 adapters in boron steel complete of reversible chisel and RH and LH laterals fins.
Nr. 5 adapters kit in boron steel complete of reversible soc and RH and LH laterals fins. 1330

Nr. 5 adapters kit in boron steel complete of reversible soc and RH and LH laterals fins.
Nr. 7 adapters kit in boron steel complete of reversible soc and RH and LH laterals fins. 1332

Nr. 7 adapters kit in boron steel complete of reversible soc and RH and LH laterals fins.
Nr. 9 adapters kit in boron steel complete of reversible soc and RH and LH laterals fins. 1334

Nr. 9 adapters kit in boron steel complete of reversible soc and RH and LH laterals fins.
Nr. 11 adapters in boron steel complete of reversible chisels and RH and LH laterals fins. 1336

Nr. 11 adapters in boron steel complete of reversible chisels and RH and LH laterals fins.
Nr. 13 adapters kit in boron steel complete of reversible soc and RH and LH laterals fins. 1338

Nr. 13 adapters kit in boron steel complete of reversible soc and RH and LH laterals fins.
RH 40cm extension. 0663

RH 40cm extension.
LH 40cm extension. 0664

LH 40cm extension.
B extension. 0670

B extension.
Extension C. 0668

Extension C.
D extension. 0665

D extension.
E extension. 0666

E extension.
F extension. 0667

F extension.
M extension. 0669

M extension.
Back to configuration New configuration

The marked fields with * are required

Table form

Model Code Minimum power Springs Machine height Machine width Weight
Cultivator Basic 3 0777 18 3 53 65 170
Cultivator Basic 4 0778 18 4 53 85 205
Cultivator Basic 5 0779 30 5 53 115 275
Cultivator Basic 6 + 1 0780 40 7 53 150 310
Cultivator Basic 7 0781 40 7 53 150 300
Cultivator Basic 8 + 1 0782 60 9 53 190 360
Cultivator Basic 9 0783 60 9 53 190 350
Cultivator Basic 10 + 1 0784 70 11 53 225 390
Cultivator Basic 12 + 1 0785 70 13 53 270 435
