EXPO SINGLE H

Machine features

  • Tool carrier with hydraulic widening
  • Available in version with front or rear three-point couplings
  • 55 cm RH side inter-row blade with quick tractor attachment and mechanic emergency blade return
  • Bulldozer-like tilling spurs
  • RH and LH wheels for depth mechanic adjustment and side stability control
  • RH lateral hydraulic widening with 2 quick couplings to the tractor





Contact request

Fille the form to get in touch.
The marked fields with * are required

Configurator

Select model

Model Code Minimum power Single widening Machine width Min width row Weight
Expo single HS 1258 40 30 112 / 142 165 265
Expo single H 0771 40 30 130 / 160 190 275
Expo single HX 1145 40 30 150 / 180 235 315
Version




Blade/s


Industry 4.0

Select optionals

Code Description
Tank Kit for machine Version H including oil, filter, single pump, multiplier, pressure regulator with manometer and single heat exchanger kit with thermostat. (for front and reversible versions specify into annotations box PTO type) 1290

Tank Kit for machine Version H including oil, filter, single pump, multiplier, pressure regulator with manometer and single heat exchanger kit with thermostat. (for front and reversible versions specify into annotations box PTO type)

Flow diverter system to control 2 double effect cylinders separately with only 2 quick tractor couplings. 1287

Flow diverter system to control 2 double effect cylinders separately with only 2 quick tractor couplings.

Electrical emergency blade return for inter-row  1841

Electrical emergency blade return for inter-row

4m power cable (necessary for tractors without 3-pole female socket). 1190

4m power cable (necessary for tractors without 3-pole female socket).

Power cable 4m extension. 1411

Power cable 4m extension.

Hydraulic tube extension kit (suction and pressure) with 5,50m for single pump with 2 quick couplings for more oil. 1196

Hydraulic tube extension kit (suction and pressure) with 5,50m for single pump with 2 quick couplings for more oil.

Hydraulic tube extensions kit (suction and pressure) 5,50m for single pump with 2 tubes (without quick couplings). 1199

Hydraulic tube extensions kit (suction and pressure) 5,50m for single pump with 2 tubes (without quick couplings).

Adding cost for RH and LH vulcanized rubber wheels with steel core installation (in substitution of standard wheels). 2035

Adding cost for RH and LH vulcanized rubber wheels with steel core installation (in substitution of standard wheels).

RH hydraulic with SMOOTH WHEEL adjustment with 2 quick tractor couplings. Only when ordering. 1743

RH hydraulic with SMOOTH WHEEL adjustment with 2 quick tractor couplings. Only when ordering.

RH hydraulic inter-row inclination with 2 quick tractor couplings. The width of the whole machine increases by 5cm. Only when ordering. 0698

RH hydraulic inter-row inclination with 2 quick tractor couplings. The width of the whole machine increases by 5cm. Only when ordering.

RH blade with clod breaker, fin and feeler 45cm (additionally at the standard blade). 0982

RH blade with clod breaker, fin and feeler 45cm (additionally at the standard blade).

RH blade with clod breaker, fin and feeler 65cm (additionally to standard blade). 0695

RH blade with clod breaker, fin and feeler 65cm (additionally to standard blade).

RH non-stop feeler pin holder. 1160

RH non-stop feeler pin holder.

RH oscillating feeler pin holder adjustable in height. 1085

RH oscillating feeler pin holder adjustable in height.

RH reinforced adjustable fender ground cover in special steel with wear-resistant interchangeable sled. It can't use contemporary with no-traction ploughshare RH code 0702 and AARATROFR060. 1767

RH reinforced adjustable fender ground cover in special steel with wear-resistant interchangeable sled. It can't use contemporary with no-traction ploughshare RH code 0702 and AARATROFR060.

Note

The codes 0702, AARATROFR060 e 1767 can be inserted in the configuration but the machine can be equipped with only one option at a time..

(while stocks last) RH adjustable fender ground cover. 1470

(while stocks last) RH adjustable fender ground cover.

RH cover fin extension for adjustable ground fender. 1760

RH cover fin extension for adjustable ground fender.

RH cover fin extension for adjustable reinforced ground fender. APRTEESND028

RH cover fin extension for adjustable reinforced ground fender.

Kit cover fin extension for RH adjustable reinforced ground fender with rise strap. APRTEESND034

Kit cover fin extension for RH adjustable reinforced ground fender with rise strap.

RH ground fender with adjustable delimiter disc. Cannot be used at the same time as the RH lifter plough kit code 0702 and AARATROFR060. 1405

RH ground fender with adjustable delimiter disc. Cannot be used at the same time as the RH lifter plough kit code 0702 and AARATROFR060.

Note

The codes 0702, AARATROFR060 e 1405 can be inserted in the configuration but the machine can be equipped with only one option at a time..

RH sled for terrain with stones or superficial roots. 0483

RH sled for terrain with stones or superficial roots.

RH 45cm inter-row plant lifting ploughshare. 1187

RH 45cm inter-row plant lifting ploughshare.

RH 45cm inter-row plant lifting ploughshare with specify stump cleaner. AVOMSQCDP007

RH 45cm inter-row plant lifting ploughshare with specify stump cleaner.

RH 55cm inter-row plant lifting ploughshare. 1268

RH 55cm inter-row plant lifting ploughshare.

RH 55cm inter-row plant lifting ploughshare with specify stump cleaner. AVOMSCCDP019

RH 55cm inter-row plant lifting ploughshare with specify stump cleaner.

RH no traction bulldozer-disk diameter 32cm. 0488

RH no traction bulldozer-disk diameter 32cm.

Universal no traction adjustable rounded tiller disc diameter 36cm. 1266

Universal no traction adjustable rounded tiller disc diameter 36cm.

RH no traction adjustable rounded tiller disc diameter 36cm with quick tractor couplings hydraulic movement 15cm. 1782

RH no traction adjustable rounded tiller disc diameter 36cm with quick tractor couplings hydraulic movement 15cm.

Universal no traction adjustable ridger bit disc diameter 40cm. 1264

Universal no traction adjustable ridger bit disc diameter 40cm.

LH no traction adjustable ridger bit disc diameter 40cm with quick tractor couplings and hydraulic. Movement 15cm. 1784

LH no traction adjustable ridger bit disc diameter 40cm with quick tractor couplings and hydraulic. Movement 15cm.

RH no traction adjustable serrated ridger 2-discs diameter 40cm complete with cleaner on first disk. 1312

RH no traction adjustable serrated ridger 2-discs diameter 40cm complete with cleaner on first disk.

RH starcut blade set with 2 stars. 1419

RH starcut blade set with 2 stars.

RH starcut blade set with 3 stars. 1730

RH starcut blade set with 3 stars.

Adapter for application of RH driving tools (15cm). 0657

Adapter for application of RH driving tools (15cm).

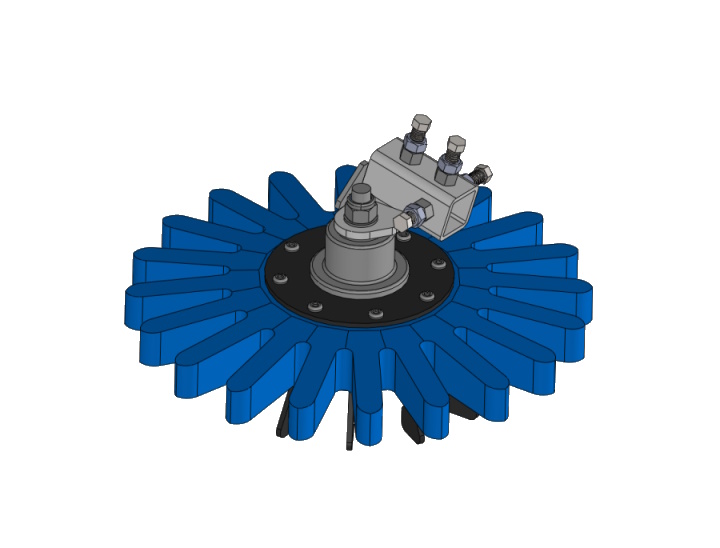

RH fingerstar diameter 54cm (blue - hard). ASTARDEXD032

RH fingerstar diameter 54cm (blue - hard).

RH hydraulic system kit to install driving accessories. Only when ordering. 1341

RH hydraulic system kit to install driving accessories. Only when ordering.

RH increased length adapter for traction tool application and fingerstar (20cm) 1847

RH increased length adapter for traction tool application and fingerstar (20cm)

RH vertical wires mower with adapter for Expo versions and wheel with mechanical adjustment for depth adjustment.  1247

RH vertical wires mower with adapter for Expo versions and wheel with mechanical adjustment for depth adjustment.

RH mower head complete with adapter, feeler and feeler holder.  1818

RH mower head complete with adapter, feeler and feeler holder.

RH hydraulic short wires mower head with gear motor and oscillating adapter.  ATRFCDX022

RH hydraulic short wires mower head with gear motor and oscillating adapter.

RH hydraulic rotary brush with gear motor and oscillating adapter.  1150

RH hydraulic rotary brush with gear motor and oscillating adapter.

RH traction mower head with blades or strings diameter 50cm. 0720

RH traction mower head with blades or strings diameter 50cm.

RH traction mower head with strings diameter 50cm. ATRBLDX053

RH traction mower head with strings diameter 50cm.

RH circular cutter hydraulic kit for 55cm or 65cm inter-row blade. AFRCLEXDX021

RH circular cutter hydraulic kit for 55cm or 65cm inter-row blade.

RH disk traction non-driving toothed disk diameter 40cm with working angle register.  1371

RH disk traction non-driving toothed disk diameter 40cm with working angle register.

RH 2 kit disks traction non-driving toothed disks diameter 40cm with working angle register.  1777

RH 2 kit disks traction non-driving toothed disks diameter 40cm with working angle register.


The marked fields with * are required

Table form

Model Code Minimum power Single widening Machine width Min width row Weight
Expo single HS 1258 40 30 112 / 142 165 265
Expo single H 0771 40 30 130 / 160 190 275
Expo single HX 1145 40 30 150 / 180 235 315
