SINGLE ORCHARD ECO

DOUBLE ORCHARD

SINGLE ORCHARD TOP

Configurator loading

Machine features

  • Tool-carrier with hydraulic widening
  • Available in version with rear or front three point couplings
  • Power take-off central with cardan
  • Hydraulic predisposition for traction utensils application with FAUCET KIT
  • Multiplier (Gr3) triple pumps, hoses, filters, tank and oil
  • Single heat exchanger with double thermostat
  • Electrohydraulic distributor to control 3 double effect cylinders
  • 8-channel multifunction electronic control unit
  • 85 - 65 - 55 cm (to specify during the order) RH side inter-row blade with multifunction joystick for electrohydraulic emergency blade return
  • RH button for feeler pin deactivation to work with the utensil in the tall grass, to avoid that the feeler pin goes back in when it is not necessary
  • Front mechanical wheels for depth adjustment and side stability control
  • Rear hydraulic toothed wheel for depth adjustment and side stability control with multifunction joystick
  • RH 40 cm lateral hydraulic widening with multifunction joystick
  • Hydraulic lateral widening with parallelogram system with 2 quick coupling to the tractor, to be able to work with the inter row utensils from 120 cms to 300 cms, to the center of the tractor - (only vers. 2)
  • RH hydraulic tool inclination with multifunction joystick
  • Priority Valve to manage the speed and total esclusion of inter-row system





Contact request

Fille the form to get in touch.
The marked fields with * are required

Configurator

Select model

Model Code Minimum power Machine width Min width row Weight
Single Orchard TOP 1 rear 1249 70 180 235 370
Single Orchard TOP 2 rear 1200 70 180 235 415
Single Orchard TOP 1 front 1682 70 195 250 390
Single Orchard TOP 2 front 1514 70 195 250 435
Version
PTO
Blade/s
Industry 4.0

Select optionals

Code Description
4m power cable (necessary for tractors without 3-pole female socket). 1190

4m power cable (necessary for tractors without 3-pole female socket).
Power cable 4m extension. 1411

Power cable 4m extension.
Extension 3m cable for 8-channel multi-function joystick. 1192

Extension 3m cable for 8-channel multi-function joystick.
Push button for immediate RH rotary brush/mower head wire rotation stop. Applicable only when ordering. 1158/R - TOP

Push button for immediate RH rotary brush/mower head wire rotation stop. Applicable only when ordering.
RH adjustable ground fender cover with shock absorber only for Frutteto front version. 1684

RH adjustable ground fender cover with shock absorber only for Frutteto front version.
RH cover fin extension for adjustable reinforced ground fender. APRTEESND028

RH cover fin extension for adjustable reinforced ground fender.
RH kit cover fin extension for adjustable reinforced ground fender with rise strap. APRTEESND034

RH kit cover fin extension for adjustable reinforced ground fender with rise strap.
RH ground fender for Frutteto rear version equipped with extension fin and adjustments depth. This rear version of the ground fender can be applied ONLY with 55cm inter-row blade, 40/50 cm circular cutters and rotary plant lifter, traction driving 3-disc. 1245

RH ground fender for Frutteto rear version equipped with extension fin and adjustments depth. This rear version of the ground fender can be applied ONLY with 55cm inter-row blade, 40/50 cm circular cutters and rotary plant lifter, traction driving 3-disc.

Note

The codes 1245, ASTARDFRD007 e ASTARDFRD008 can be inserted in the configuration but the machine can be equipped with only one option at a time..

RH length adjustable delimiter disc for ground fender Frutteto rear version. 1296

RH length adjustable delimiter disc for ground fender Frutteto rear version.
Blade with clod breaker, fin and feeler 45cm for Orchard (additionally to the standard blade). ALAMAFRU013

Blade with clod breaker, fin and feeler 45cm for Orchard (additionally to the standard blade).
Blade with clod breaker, fin and feeler 55cm for Orchard (additionally to the standard blade). 0942

Blade with clod breaker, fin and feeler 55cm for Orchard (additionally to the standard blade).
Blade with clod breaker, fin and feeler 65cm for Orchard (additionally to standard blade). ALAMAFRU006

Blade with clod breaker, fin and feeler 65cm for Orchard (additionally to standard blade).
Blade with clod breaker, fin and feeler 85cm for Orchard (additionally to standard blade). ALAMAFRU007

Blade with clod breaker, fin and feeler 85cm for Orchard (additionally to standard blade).
Blade with clod breaker, fin and feeler 100cm for Orchard (additionally to standard blade). ALAMAFRU008

Blade with clod breaker, fin and feeler 100cm for Orchard (additionally to standard blade).
RH starcut blade set with 3 stars. 1730

RH starcut blade set with 3 stars.
RH 3 kit disks non-traction non-driving toothed disks diameter 40cm. 1201

RH 3 kit disks non-traction non-driving toothed disks diameter 40cm.
RH 4 kit disks non-traction non-driving toothed disks diameter 40cm. 1279

RH 4 kit disks non-traction non-driving toothed disks diameter 40cm.
RH 5 kit disks non-traction non-driving toothed disks diameter 40cm. 1282

RH 5 kit disks non-traction non-driving toothed disks diameter 40cm.
RH fingerstar diameter 54cm with adapter (blue - hard). ASTARDFRD010

RH fingerstar diameter 54cm with adapter (blue - hard).
RH fingerstar diameter 70cm with adapter (red - hard). ASTARDFRD007

RH fingerstar diameter 70cm with adapter (red - hard).

Note

The codes 1245, ASTARDFRD007 e ASTARDFRD008 can be inserted in the configuration but the machine can be equipped with only one option at a time..

RH fingerstar diameter 70cm with adapter, feeler and feeler pin holder (red - hard). ASTARDFRD008

RH fingerstar diameter 70cm with adapter, feeler and feeler pin holder (red - hard).

Note

The codes 1245, ASTARDFRD007, ASTARDFRD008 e ASTARDFRD008 can be inserted in the configuration but the machine can be equipped with only one option at a time..

RH mower head with short wires from 28 to 36cm and adapter for Orchard. 1820

RH mower head with short wires from 28 to 36cm and adapter for Orchard.
RH hydraulic rotary brush for Orchard and Ventral B with adapter. 1150/FDX

RH hydraulic rotary brush for Orchard and Ventral B with adapter.
Orchard widening parallelogram and predisposition to operate 1 double effect hydraulic cylinder directly on Joystick. 2009 Orchard widening parallelogram and predisposition to operate 1 double effect hydraulic cylinder directly on Joystick.
RH vertical wires mower head with adapter for orchard versions, hydraulic tipping and auto-return in shape system. 1253

RH vertical wires mower head with adapter for orchard versions, hydraulic tipping and auto-return in shape system.
Pair of quick tractor couplings to control an additional cylinder with tractor feed 2042

Pair of quick tractor couplings to control an additional cylinder with tractor feed
RH traction mower head with blades diameter 50cm. 0720/FDX

RH traction mower head with blades diameter 50cm.
RH traction mower head with strings diameter 50cm. ATRBLDX052

RH traction mower head with strings diameter 50cm.
2th RH traction mower head with blades diameter 50cm. 1318

2th RH traction mower head with blades diameter 50cm.
2th RH traction mower head with wires diameter 50cm. ATRBLDX023

2th RH traction mower head with wires diameter 50cm.
RH traction mower head with blades diameter 80cm (not applicable on Double orchard 1). ATRBLDX051

RH traction mower head with blades diameter 80cm (not applicable on Double orchard 1).
RH traction mini-shredder head 60cm. 0718/F

RH traction mini-shredder head 60cm.

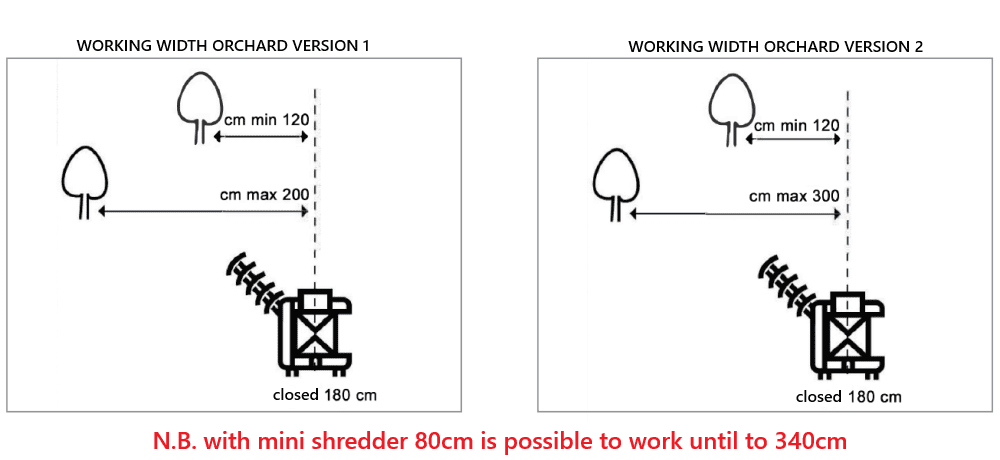

RH traction mini-shredder head 80cm complete with roller, feeler pin and floating adapter. 1462

RH traction mini-shredder head 80cm complete with roller, feeler pin and floating adapter.
Kit hydraulic overturning with RH mini-shredder 80cm complete with roller and floating adapter WITHOUT FEELER. With multifunction joystick (applicable only when ordering). AMTRCFDXO015

Kit hydraulic overturning with RH mini-shredder 80cm complete with roller and floating adapter WITHOUT FEELER. With multifunction joystick (applicable only when ordering).
Kit hydraulic overturning with RH mini-shredder 80cm complete with roller and floating adapter WITHOUT FEELER. 2 quick couplings are required. AMTRCFDXO016

Kit hydraulic overturning with RH mini-shredder 80cm complete with roller and floating adapter WITHOUT FEELER. 2 quick couplings are required.
RH traction rotary plant lifter with 4 shedding fins diameter 40cm for Orchard. 1042/FDX

RH traction rotary plant lifter with 4 shedding fins diameter 40cm for Orchard.
RH kit to transform the rotary plant lifter in cutter diameter 40cm to 3 hoes. AKTSFDQTZ002

RH kit to transform the rotary plant lifter in cutter diameter 40cm to 3 hoes.
RH traction rotary plant lifter with 4 shedding fins diameter 50cm for Orchard. 1043/FDX

RH traction rotary plant lifter with 4 shedding fins diameter 50cm for Orchard.
RH kit to transform the rotary plant lifter in cutter diameter 50cm to 4 hoes. AKTSFDCQZ003

RH kit to transform the rotary plant lifter in cutter diameter 50cm to 4 hoes.
RH traction 3-hoes hydraulic circular cutter diameter 25cm complete with low engine. 1822

RH traction 3-hoes hydraulic circular cutter diameter 25cm complete with low engine.
2nd RH traction 3-hoes hydraulic circular cutter diameter 25cm complete with low engine for limited inter-row work. 1823

2nd RH traction 3-hoes hydraulic circular cutter diameter 25cm complete with low engine for limited inter-row work.
RH traction 3-hoes hydraulic circular cutter diam. 40cm with brush for Orchard. AFRECSQDX013

RH traction 3-hoes hydraulic circular cutter diam. 40cm with brush for Orchard.
RH traction 3-hoes hydraulic circular cutter diameter 40cm for Orchard. AFRECQCDX026

RH traction 3-hoes hydraulic circular cutter diameter 40cm for Orchard.
RH traction 4-hoes hydraulic circular cutter diameter 50cm for Orchard. AFRECCCDX014

RH traction 4-hoes hydraulic circular cutter diameter 50cm for Orchard.
RH kit to transform the cutter in rotary plant lifter diameter 50cm to 4 fins. 1093

RH kit to transform the cutter in rotary plant lifter diameter 50cm to 4 fins.
RH traction hydraulic circular cutter, 65cm diameter complete with 6-hoes . AFRECSCDX001 RH traction hydraulic circular cutter, 65cm diameter complete with 6-hoes .
Note

The codes 1767, 1405 e AFRECSCDX001 can be inserted in the configuration but the machine can be equipped with only one option at a time..

RH management kit for 2 circular cutters on Orchard (one on fixed arm adapter and one on inter-row system, only when ordering) 2001

RH management kit for 2 circular cutters on Orchard (one on fixed arm adapter and one on inter-row system, only when ordering)
2th RH traction 4-hoes hydraulic circular cutter 50cm diameter (only when ordering). AFRECCCDX012

2th RH traction 4-hoes hydraulic circular cutter 50cm diameter (only when ordering).
RH traction disk set with 3 plant lifting disks diameter 36cm for Orchard and Ventral B 0717/FDX

RH traction disk set with 3 plant lifting disks diameter 36cm for Orchard and Ventral B
RH traction 36cm diameter 4-lifting disc for Orchard and Ventral B 1276

RH traction 36cm diameter 4-lifting disc for Orchard and Ventral B
RH traction 36cm diameter 5-lifting disc for Orchard and Ventral B 1316

RH traction 36cm diameter 5-lifting disc for Orchard and Ventral B
RH stump cleaner on 2 / 3 / 4 traction disk set plant lifting disks diameter 36cm. 1384

RH stump cleaner on 2 / 3 / 4 traction disk set plant lifting disks diameter 36cm.
RH adapter to apply on the fixed arm a rotary tiller or hoe or mower head or set toothed disks. 1203

RH adapter to apply on the fixed arm a rotary tiller or hoe or mower head or set toothed disks.
RH 3 kit disks no-traction driving toothed disks diameter 40cm. 1775

RH 3 kit disks no-traction driving toothed disks diameter 40cm.
RH 4 kit disks no-traction driving toothed disks diameter 40cm. 1773

RH 4 kit disks no-traction driving toothed disks diameter 40cm.
RH 5 disks kit no-traction driving toothed disks diameter 40cm. 1757

RH 5 disks kit no-traction driving toothed disks diameter 40cm.
Back to configuration New configuration

The marked fields with * are required

Table form

Model Code Minimum power Machine width Min width row Weight
Single Orchard TOP 1 rear 1249 70 180 235 370
Single Orchard TOP 2 rear 1200 70 180 235 415
Single Orchard TOP 1 front 1682 70 195 250 390
Single Orchard TOP 2 front 1514 70 195 250 435
