INTER ROW BLADE KIT H

Configurator loading

Machine features

45 - 55 - 65 cm LH or RH inter-row blade with quick tractor couplings (WITHOUT bulldozer-like tilling spur and WITHOUT emergency blade return)

On request it is possible to apply a mechanical or electric emergency return.

The mechanical emergency return can be various lengths:

L = 1,5 m cod. : 1184 / CVRCHMEC013
L = 3 m cod. : 1102 / CVRCHMEC028
L = 4,5 m cod. : 1101 / CVRCHMEC029

The electric emergency return is standard, cod. : 1185

Contact request

Fille the form to get in touch.
The marked fields with * are required

Name, last name*

Email*

Message

I accept Terms and conditions

Configurator

Select model

Model	Code	Weight

RH inter-row blade kit H	1352	35
LH Inter-row blade kit H	1353	35

Blade/s

45 cm.

55 cm.

65 cm.

85 cm.

Select optionals

		Code	Description
		1184	Manual mechanical emergency blade return, 1,5m cable lenght.
		1102	Manual mechanical emergency blade return, 3 meters cable lenght.
		1101	Manual mechanical emergency blade return, 4,5 meters cable lenght.
		1185	Manual electrohydraulic emergency blade return with kit electrovalve.
		1363	Contemporary manual electrohydraulic emergency blades return with kit valves.
		1189	Electrohydraulic emergency return of each blade separately and RH and LH simultaneously with the electrical control unit with kit valves.

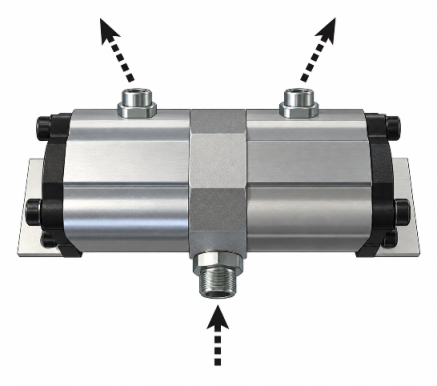

		1223	Professional gears divisor of flow that avoid to overheat the oil of the same installation (it replaces the independent hydraulic system). For H, ECO and TOP models necessary at least 35 liters oil in entrance (max 75 liters), min pressure 120 bar, temperature oil 90°C max. For the FULL models necessary at least 50 liters oil in entrance (max 75 liters), min pressure 200bar, max oil temperature 90° Cs. Before order, please verify the presence on a good cooling system on te tractor.
		0694	Bulldozer-like tilling spur.
		1160	RH non-stop feeler pin holder.
		1085	RH oscillating feeler pin holder adjustable in height.
		0483	RH sled for terrain with stones or superficial roots.
		1187	RH 45cm inter-row plant lifting ploughshare.
		1268	RH 55cm inter-row plant lifting ploughshare.
		1266	Universal no traction adjustable rounded tiller disc diameter 36cm.
		1264	Universal no traction adjustable ridger bit disc diameter 40cm.
		1419	RH starcut blade set with 2 stars.
		1730	RH starcut blade set with 3 stars.
		0657	Adapter for application of RH driving tools (15cm).
		ASTARDEXD034	RH fingerstar diameter 54cm for Expo complete with feeler and feeler pin holder (blue - hard).
		ASTARDEXD032	RH fingerstar diameter 54cm (blue - hard).
