Machine features

Tool carrier available in front or rear version
3-points frame complete with couplings cat. I - II
RH and LH wheels for depth mechanical adjustment and side stability control
RH lateral hydraulic widening with 2 quick tractor couplings
RH universal lateral reversible support with predisposition for tools installation

Contact request

Fille the form to get in touch.
The marked fields with * are required

Name, last name*

Email*

Message

I accept Terms and conditions

Configurator

Select model

Model	Code	Minimum power	Single widening	Min width row	Weight

Expo single SMART 1S	2043	40	20	100	170
Expo single SMART 1	1810	40	30	105	180
Expo single SMART 2	1811	40	40	115	195
Expo single SMART 3	1812	40	50	130	210

Version

Front

Back

Agriculture Smart

Telemetric data interconnection and control system (ex. Industry 4.0) click here for info...

Select optionals

		Code	Description
		1132	Electrohydraulic cast iron distributor with multifunction joystick to operate 2 double effect cylinders separately (applicable only when ordering). To work it only needs 2 quick tractor couplings.

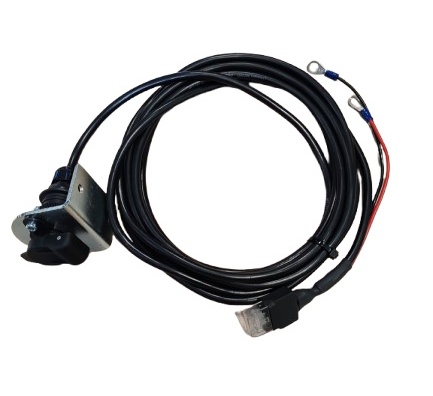

		1190	4m power cable (necessary for tractors without 3-pole female socket).

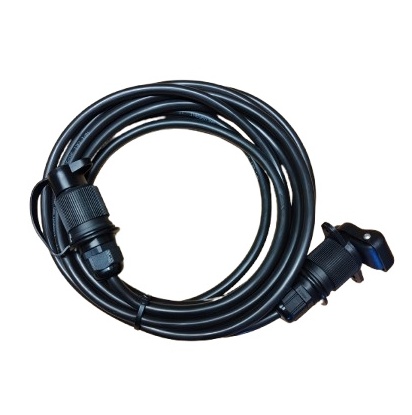

		1411	Power cable 4m extension.
		1158/S	Push button for immediate rotary brush/mower head wire rotation stop. Applicable only when ordering.
		1794	Adding cost for RH and LH vulcanized rubber wheels installation (in substitution of standard wheels).
		AINCLEXDX022	RH hydraulic inter-row inclination with 2 quick tractor couplings. The width of the closed machine increases by +7cm.
		1264	Universal no traction adjustable ridger bit disc diameter 40cm.
		1312	RH no traction adjustable serrated ridger 2-discs diameter 40cm complete with cleaner on first disk.
		ASTARDEXD031	RH fingerstar diameter 54cm (blue - hard).
		1305	RH fingerstar diameter 70cm (yellow - medium).
		ASTARDEXD026	RH fingerstar diameter 70cm (red - hard).
		1419	RH starcut blade set with 2 stars.
		1730	RH starcut blade set with 3 stars.
		1308	RH short wires mowers head and adjustable height hood complete with adapter and 2 quick tractor couplings.
		1309	RH hydraulic rotary brush with oscillating adapter and 2 quick tractor couplings. Limitations: on SMART 1 front version is not applicable; on SMART 2 front version is applicable but need to equip RH hydraulic inclination code 1795.
		1341	RH hydraulic system kit to install driving accessories. Only when ordering.
		2030	RH mower head complete with adapter, feeler and feeler holder and 2 quick tractor couplings to SPOL/TRB management faucet. ONLY WITH INCLINATION AND HYDRAULIC DISTRIBUTOR

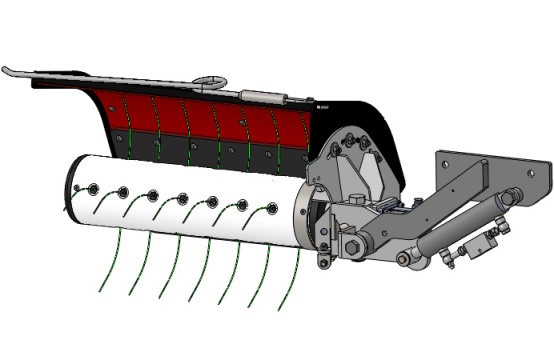

		2029	RH hydraulic rotary brush with oscillating adapter and 2 quick tractor couplings to SPOL/TRB management faucet. ONLY WITH INCLINATION AND HYDRAULIC DISTRIBUTOR Limits: on front SMART 1 is not applicable
