Arrizza s.r.l.

Machine features

Cultivator with 30x30 spiral spring and cage rollers
Pumps connected directly to the tractor power take-off (for rubbertyred and crawler tractors)
Kit including multiplier double pump, hoses, filter, tank and oil
Single heat exchanger with double thermostat
Multifunction electronic control unit
65 cm RH side inter-row blade with multifunction joystick for electrohydraulic emergency blade return
4,5 - 21 - 26 cm ploughshares (to specify during the order)

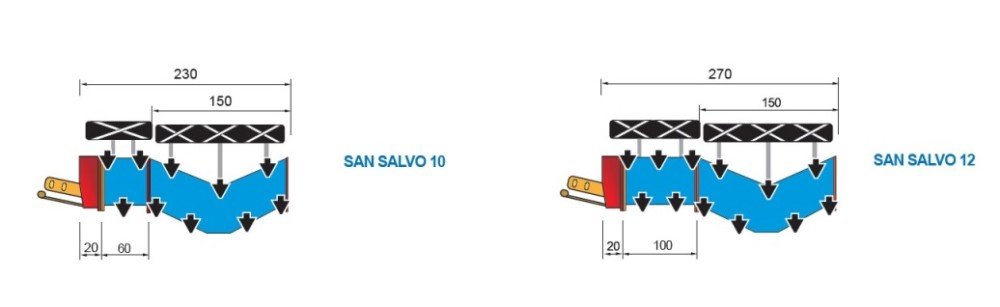

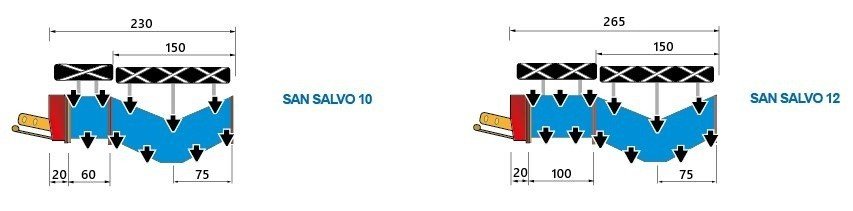

60 or 100 cm right lateral expansion with cage roller
Separately hydraulic roller adjustment with multifunction joystick
Hinge and piston for lateral widening hydraulic roll-over with multifunction joystick
RH and LH depth adjustment wheels with bearings (each)
Sled for terrain with stones or superficial roots

Contact request

Fille the form to get in touch.
The marked fields with * are required

Name, last name*

Email*

Message

I accept Terms and conditions

Configurator

Select model

Model	Code	Minimum power	Springs	Machine height	Machine width	Weight

San Salvo TOP 10	0757	60	10	53	220	700
San Salvo TOP 12	0758	60	12	53	265	750

Blade/s

45 cm.

55 cm.

65 cm.

85 cm.

Ploughshare

4,5 cm.

21 cm.

26 cm.

Industry 4.0

Industry 4.0 click here for info...

Select optionals

		Code	Description
		0694	Bulldozer-like tilling spur.
		1335	Nr. 10 adapters kit in boron steel complete of reversible soc and RH and LH laterals fins.
		1337	Nr. 12 adapters kit in boron steel complete of reversible soc and RH and LH laterals fins.
		1190	4m power cable (necessary for tractors without 3-pole female socket).
		1411	Power cable 4m extension.
		1192	Extension 3m cable for 8-channel multi-function joystick.
		1052	RH button for feeler deactivation to work. Only when ordering.
		0698	RH hydraulic inter-row inclination with 2 quick tractor couplings. The width of the whole machine increases by 5cm. Only when ordering.
		ALAMAINT029	RH blade with clod breaker, fin and feeler 55cm (additionally at the standard blade).
		0696	RH blade with clod breaker, fin and feeler 85cm (additionally to standard blade).
		1160	RH non-stop feeler pin holder.
		1085	RH oscillating feeler pin holder adjustable in height.
		1050	RH stump cleaner for inter-row kit (remove the fixing plate when installing code 1247 RH vertical wires mower head).
		1187	RH 45cm inter-row plant lifting ploughshare.
		1268	RH 55cm inter-row plant lifting ploughshare.
		0488	RH no traction bulldozer-disk diameter 32cm.
		1266	Universal no traction adjustable rounded tiller disc diameter 36cm.
		1264	Universal no traction adjustable ridger bit disc diameter 40cm.
		1312	RH no traction adjustable serrated ridger 2-discs diameter 40cm complete with cleaner on first disk.
		1341	RH hydraulic system kit to install driving accessories. Only when ordering.
		AFRCLEXDX021	RH circular cutter hydraulic kit for 55cm or 65cm inter-row blade.
