Arrizza s.r.l.

Machine features

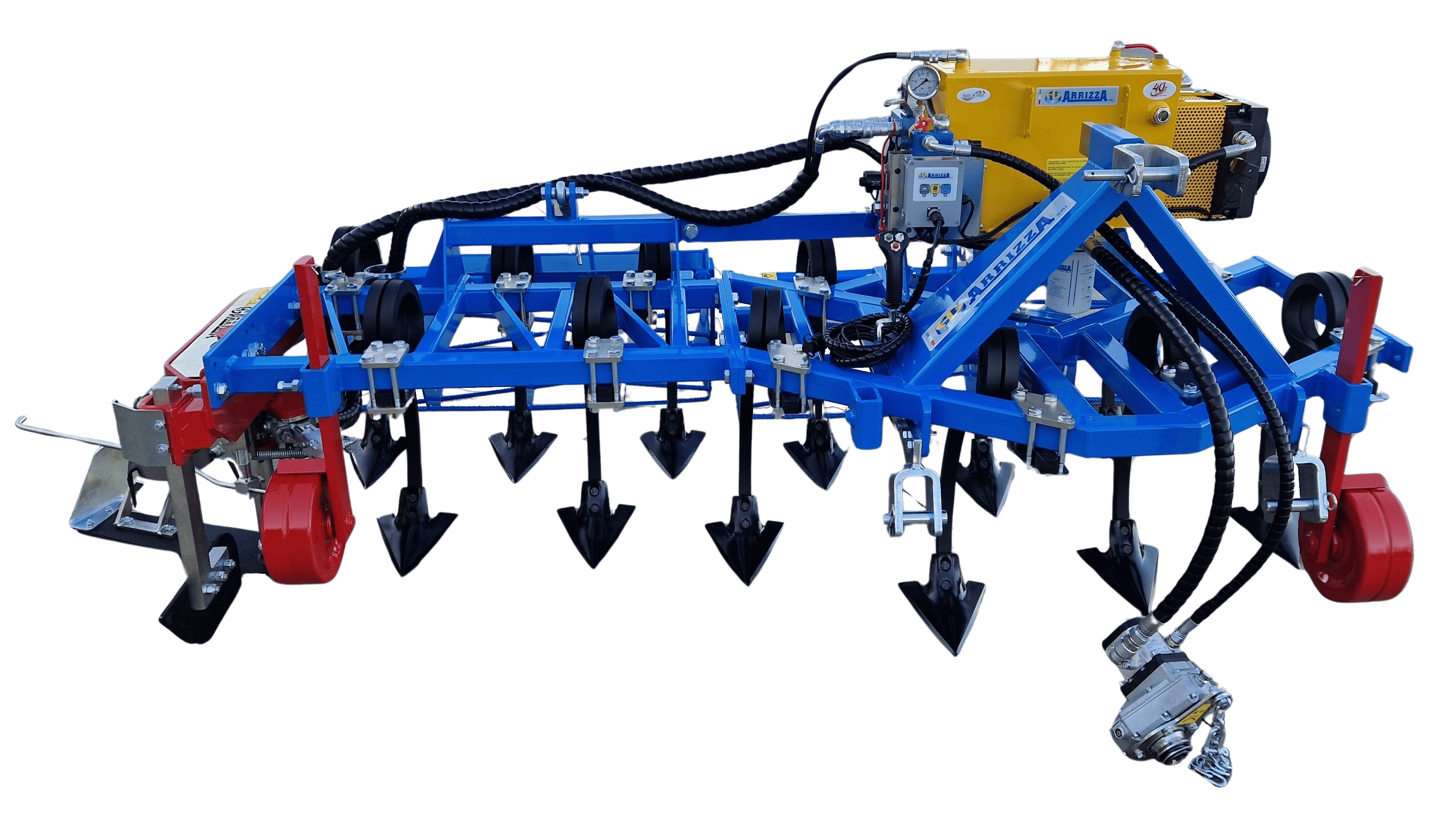

Cultivator with 30x30 spiral spring and cage rollers
Pump connected directly to the tractor power take-off (for rubbertyred and crawler tractors)
Kit including multiplier single pump, hoses, filter, tank and oil
Single heat exchanger with double thermostat
Electronic control unit with alarm
65 cm RH side inter-row blade with single-channel joystick for electrohydraulic emergency blade return
4,5 - 21 - 26 cm ploughshares (to specify during the order)
60 or 100 cm RH lateral expansion with cage roller
Separately mechanical adjustment of rear rollers
RH and LH depth adjustment wheels with bearings
Sled for terrain with stones or superficial roots

Contact request

Fille the form to get in touch.
The marked fields with * are required

Name, last name*

Email*

Message

I accept Terms and conditions

Configurator

Select model

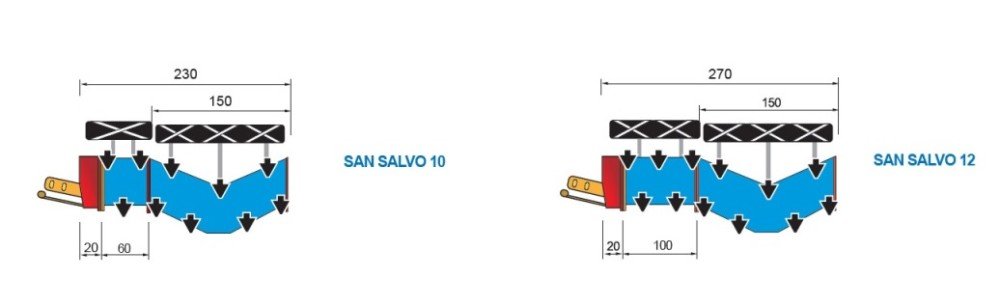

Model	Code	Minimum power	Springs	Machine height	Machine width	Weight

San Salvo ECO 10	0755	60	10	53	220	670
San Salvo ECO 12	0756	60	12	53	265	720

Blade/s

45 cm.

55 cm.

65 cm.

85 cm.

Ploughshare

4,5 cm.

21 cm.

26 cm.

Agriculture Smart

Telemetric data interconnection and control system (ex. Industry 4.0) click here for info...

Select optionals

		Code	Description
		0671	Hinge and cylinder for lateral extension hydraulic roll-over with 2 quick tractor couplings. Can be installed only on San Salvo and Basic 10-12 only when ordering.
		0824	Hydraulic rollers adjustment with 4 quick tractor couplings.
		0694	Bulldozer-like tilling spur.
		1335	Nr. 10 adapters kit in boron steel complete of reversible soc and RH and LH laterals fins.
		1337	Nr. 12 adapters kit in boron steel complete of reversible soc and RH and LH laterals fins.
		1190	4m power cable (necessary for tractors without 3-pole female socket).
		1411	Power cable 4m extension.
		EJOYSCVPL004	3m extension cable for single channel and dual-channel joystick.
		1052	RH button for feeler deactivation to work. Only when ordering.
		0698	RH hydraulic inter-row inclination with 2 quick tractor couplings. The width of the whole machine increases by 5cm. Only when ordering.
		ALAMAINT029	RH blade with clod breaker, fin and feeler 55cm (additionally at the standard blade).
		0696	RH blade with clod breaker, fin and feeler 85cm (additionally to standard blade).
		1160	RH non-stop feeler pin holder.
		APTASTSD045	RH oscillating feeler pin holder adjustable in height.
		1050	RH stump cleaner for inter-row kit (remove the fixing plate when installing code 1247 RH vertical wires mower head).
		1187	RH 45cm inter-row plant lifting ploughshare.
		1268	RH 55cm inter-row plant lifting ploughshare.
		0488	RH no traction bulldozer-disk diameter 32cm.
		1266	Universal no traction adjustable rounded tiller disc diameter 36cm.
		1264	Universal no traction adjustable ridger bit disc diameter 40cm.
		1312	RH no traction adjustable serrated ridger 2-discs diameter 40cm complete with cleaner on first disk.
		1341	RH hydraulic system kit to install driving accessories. Only when ordering.
		AFRCLEXDX021	RH circular cutter hydraulic kit for 55cm or 65cm inter-row blade.
