Arrizza s.r.l.

Universal pole setter machine for right-side flanging on standard holes. For use with crawler tractors. Equipped with:

Hook for removing old poles
Height-adjustable pole support for adjusting piston stroke to pole height
4-lever 45 liters distributor powered by tractor’s quick couplings
4 hydraulic movements for: 115 cm-stroke pole driver; lateral tilt; lengthwise tilt; 15 cm upper-lateral travel for aligning the head with the pole and for quickly correcting the wrong tractor positioning with respect to the row

Fille the form to get in touch.
The marked fields with * are required

Name, last name*

Email*

Message

I accept Terms and conditions

	Model	Code	Minimum power	Extensibility	Lateral inclination	Weight	Minimum pole height	Maximum pole height

	Lateral pole setter BAT 3300 L	0811	50	115	30° / 35°	300	200	340

Industry 4.0

Industry 4.0 click here for info...

		Code	Description
		1004	Hydraulic 3-point control unit with oil including tank, double heat exchanger, multiplier, pump, filter, hoses, priority flow adjustment valve with 0 to 40 l/min manual variator, pressure gauge, pair of quick couplings (useful also to apply leaf strippers, polesetters, rotary brushes, augers, rakes for pruning, binders and cutting machines).

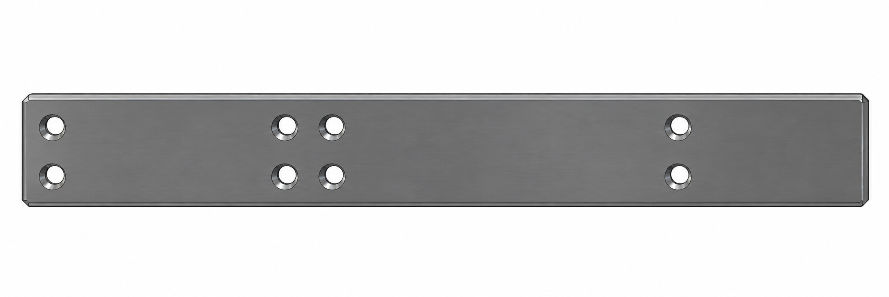

		0813	Threaded adapter plate to be welded upon tractors which are non predisposed.
		0818	Connection kit with nr.8 quick couplings to the tractor by eliminating the standard 45lt distributor with 4 levers. For the replacement, there is a reduction in the price list.
		1190	4m power cable (necessary for tractors without 3-pole female socket).
		1411	Power cable 4m extension.
		0988	Electrohydraulic distributor kit with joystick controls.
		1192	Extension 3m cable for 8-channel multi-function joystick.
		1365	Extension for poles up to 5 mt of height. It's applicable only when ordering.
