EXPO SINGLE SMART

EXPO DOPPIO SMART TOP

EXPO DOUBLE SMART

Configurator loading

Machine features

REVERSIBLE tool carrier with 3-points frame complete with couplings cat. I - II
RH and LH wheels for depth mechanical adjustment and side stability control
RH and LH lateral hydraulic independent side lateral hydraulic widening with 4 quick tractor couplings
RH and LH universal lateral reversible supports with predisposition for tools installation

Contact request

Fille the form to get in touch.
The marked fields with * are required

Name, last name*

Email*

Message

I accept Terms and conditions

Configurator

Select model

	Modello	Code	Minimum power	Widening	Min width row	Max width row	Weight

	Expo double SMART 1	1879	40	30 + 30	125	230	270
	Expo double SMART 2	1880	40	40 + 40	145	270	285
	Expo double SMART 3	1881	40	50 + 50	175	320	300

PHASE 1 - CHOICE ACCESSORY FOR WORKING

CHOOSE THE RIGHT ACCESSORY FOR YOUR WORKING

		Code	Description
		1182	Adding cost for RH and LH vulcanized rubber wheels with steel core installation (in substitution of standard wheels).
		1162	RH and LH no traction adjustable 2 set serrated 2 ridger discs complete with cleaners on first disk.
		1167	Pair of universal no traction adjustable ridger bit discs.
		2050	RH and LH fingerstars diameter 54cm (blue - hard).
		2028	RH and LH fingerstars diameter 70cm (red - hard).
		1130	RH and LH fingerstars diameter 70cm (yellow - medium).
		1170	RH and LH starcut blade set with 2 stars.
		2012	Pair 3-disks LH and RH starcut blades.

PHASE 2 - MOVEMENT OPTIONALS

CHOOSE TYPE OF WIDENING DO YOU PREFER

INDEPENDENT WIDENING Separate cylinders management and 4 quick couplings - NO ADDITIONAL COSTS

SIMULTANEOUSLY WIDENING

SIMULTANEOUS cylinders management and 2 quick couplings )

CHOOSE THE TYPE OF OPTIONAL MOVEMENT

Surcharge for hydraulic wheels adjustment

4 quick couplings )

Hydraulic ascent and descent system tool

Stroke 15 cm and overall dimensions 17 cm - 4 quick couplings )

Tool hydraulic inclination

Overall dimensions 14 cm - 4 quick couplings )

PHASE 3 - SUMMARY

Calculation quick couplings TEMPORARY:

Movements with quick tractor couplings

Movements through multifunction joystick

Calculation of quick couplings DEFINITIVE:

Phase1 Phase2 Phase3 Finalize

Estimate PDF Back to configuration New configuration

The marked fields with * are required

Name, last name* Email*

Provincia* Città* Phone

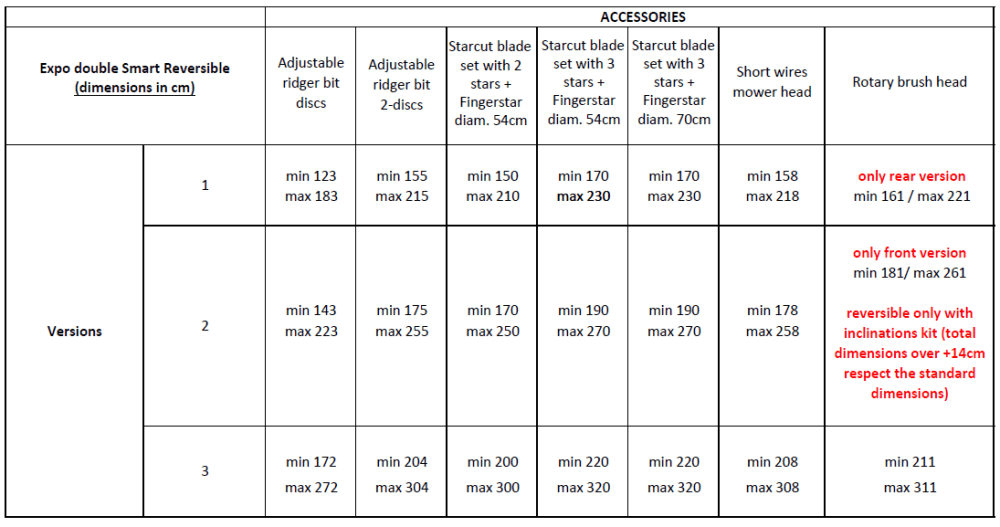

Table form

Model	Code	Minimum power	Widening	Min width row	Max width row	Weight

Expo double SMART 1	1879	40	30 + 30	125	230	270
Expo double SMART 2	1880	40	40 + 40	145	270	285
Expo double SMART 3	1881	40	50 + 50	175	320	300
